PESD27VV1BAX

PESD27VV1BAX

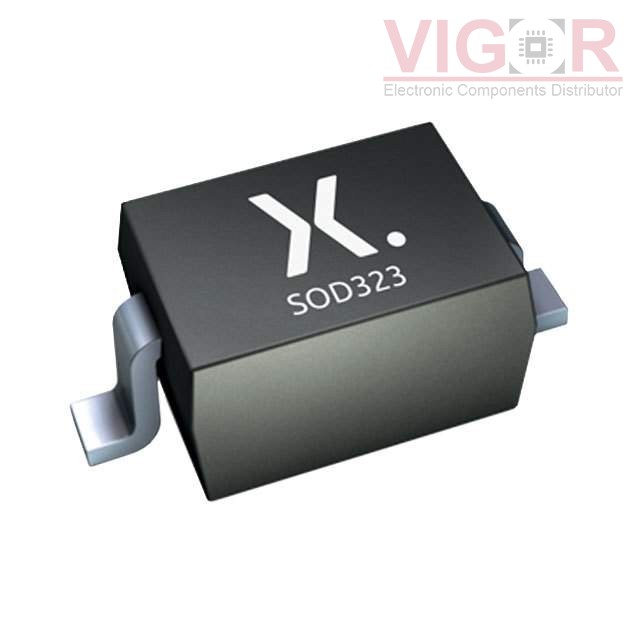

Image is for reference,
please contact us to get the real picture

Part No :

PESD27VV1BAX

Manufacturer
Nexperia
Description
TVS DIODE 27V 45V SOD323
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
PESD27VV1BAX PDF
Availability
4903 pieces
Unit Price
$0.34000

Current price of PESD27VV1BAX is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PESD27VV1BAX Specifications
Type Description
Series:Automotive, AEC-Q101
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Zener
Unidirectional Channels:-
Bidirectional Channels:1
Voltage - Reverse Standoff (Typ):27V (Max)
Voltage - Breakdown (Min):28V
Voltage - Clamping (Max) @ Ipp:45V
Current - Peak Pulse (10/1000µs):3A (8/20µs)
Power - Peak Pulse:-
Power Line Protection:No
Applications:Automotive, Telecom
Capacitance @ Frequency:14pF @ 1MHz
Operating Temperature:-55°C ~ 150°C (TA)
Mounting Type:Surface Mount
Package / Case:SC-76, SOD-323
Supplier Device Package:SOD-323
