AQ3522-01FTG

AQ3522-01FTG

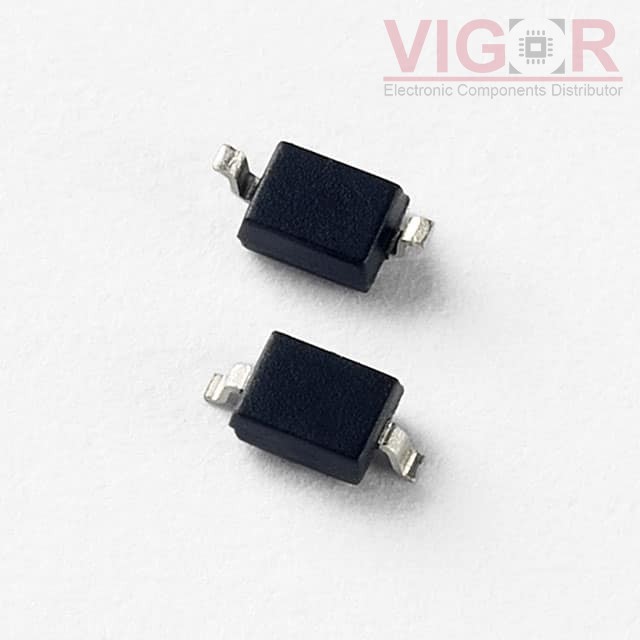

Image is for reference,
please contact us to get the real picture

Part No :

AQ3522-01FTG

Manufacturer
Wickmann / Littelfuse
Description
TVS DIODE 15.5V 2.5A 22KV SOD323
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jul 31 - Aug 04 2025
DataSheet
AQ3522-01FTG PDF
Availability
216115000 pieces
Unit Price
$0.40000

Current price of AQ3522-01FTG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AQ3522-01FTG Specifications
Type Description
Series:Automotive, AEC-Q101, AQ3522, SPA®
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Zener
Unidirectional Channels:-
Bidirectional Channels:1
Voltage - Reverse Standoff (Typ):5V (Max)
Voltage - Breakdown (Min):8.5V
Voltage - Clamping (Max) @ Ipp:18V
Current - Peak Pulse (10/1000µs):2.5A (8/20µs)
Power - Peak Pulse:-
Power Line Protection:No
Applications:Automotive, HDMI, USB
Capacitance @ Frequency:0.15pF @ 3GHz
Operating Temperature:-40°C ~ 150°C (TA)
Mounting Type:Surface Mount
Package / Case:SC-76, SOD-323
Supplier Device Package:SOD-323
