ESD3B24WS

ESD3B24WS

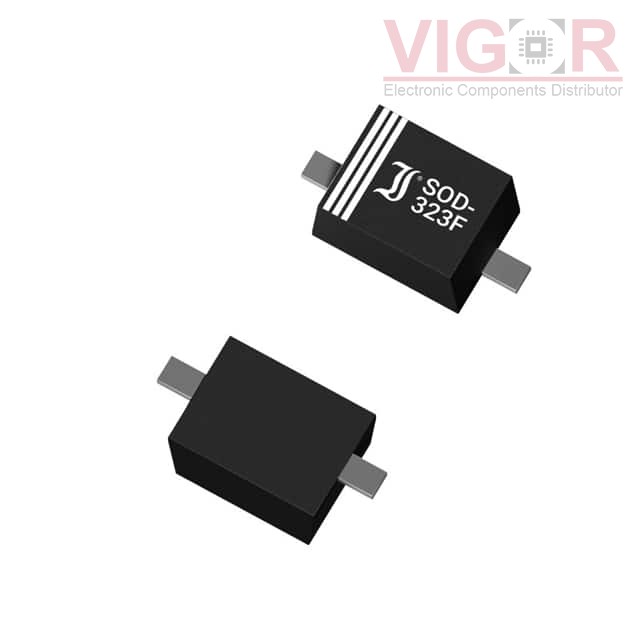

Image is for reference,
please contact us to get the real picture

Part No :

ESD3B24WS

Manufacturer
Diotec Semiconductor
Description
ESD SOD-323 24V 200W UNI
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
ESD3B24WS PDF
Availability
0 pieces
Unit Price
$0.09990

Current price of ESD3B24WS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ESD3B24WS Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Type:Zener
Unidirectional Channels:-
Bidirectional Channels:1
Voltage - Reverse Standoff (Typ):24V
Voltage - Breakdown (Min):26.7V
Voltage - Clamping (Max) @ Ipp:42V
Current - Peak Pulse (10/1000µs):5A (8/20µs)
Power - Peak Pulse:350W
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:50pF @ 1MHz
Operating Temperature:-50°C ~ 125°C (TJ)
Mounting Type:Surface Mount
Package / Case:SC-90, SOD-323F
Supplier Device Package:SOD-323
