MXL15KP85A

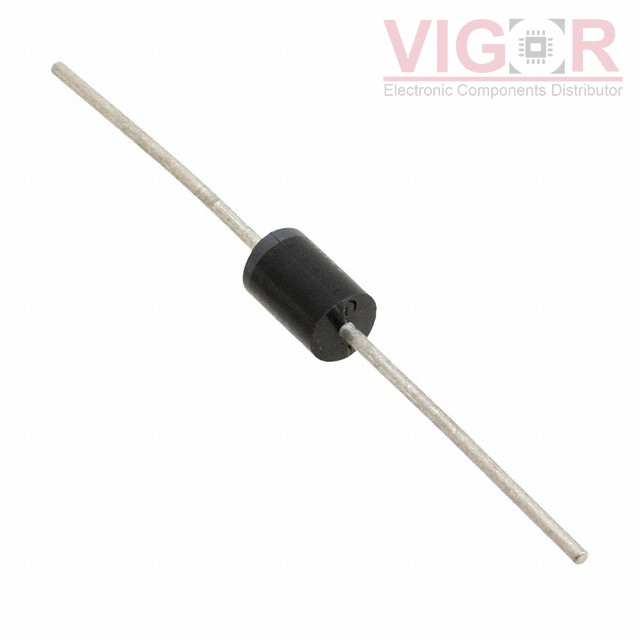

Image is for reference,
please contact us to get the real picture

Part No :: MXL15KP85A

Manufacturer: Roving Networks / Microchip Technology

Description: TVS DIODE 85V 137V CASE 5A

Catalog: TVS - Diodes

Shipped from: HK warehouse

Expected Shipping Date: Aug 09 - Aug 13 2025

DataSheet: MXL15KP85A PDF

Availability: 0 pieces

Unit Price: ~~$40.54400~~

Current price of MXL15KP85A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MXL15KP85A Specifications

Type	Description
Series:	Military, MIL-PRF-19500
Package:	Bulk
Part Status:	Active
Type:	Zener
Unidirectional Channels:	1
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	85V
Voltage - Breakdown (Min):	94.4V
Voltage - Clamping (Max) @ Ipp:	137V
Current - Peak Pulse (10/1000µs):	109A
Power - Peak Pulse:	15000W (15kW)
Power Line Protection:	No
Applications:	General Purpose
Capacitance @ Frequency:	-
Operating Temperature:	-65°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	DO-204AR, Axial
Supplier Device Package:	Case 5A (DO-204AR)

Please confirm the specifications of the products when ordering.
