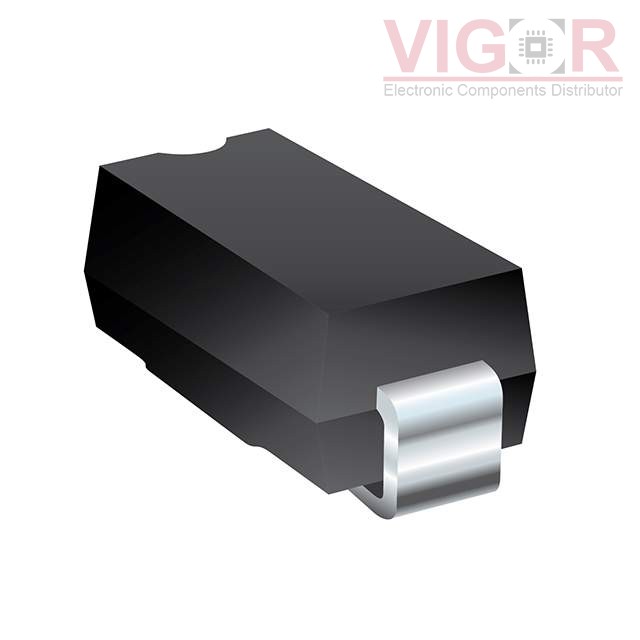

SMBJ54A-Q

Image is for reference,
please contact us to get the real picture

Part No :: SMBJ54A-Q

Manufacturer: J.W. Miller / Bourns

Description: TVS DIODE 54V 87.1V SMB

Catalog: TVS - Diodes

Shipped from: HK warehouse

Expected Shipping Date: Aug 02 - Aug 06 2025

DataSheet: SMBJ54A-Q PDF

Availability: 0 pieces

Unit Price: ~~$0.13558~~

Current price of SMBJ54A-Q is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SMBJ54A-Q Specifications

Type	Description
Series:	Automotive, AEC-Q101, SMBJ
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Zener
Unidirectional Channels:	1
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	54V
Voltage - Breakdown (Min):	60V
Voltage - Clamping (Max) @ Ipp:	87.1V
Current - Peak Pulse (10/1000µs):	6.9A
Power - Peak Pulse:	600W
Power Line Protection:	No
Applications:	Automotive
Capacitance @ Frequency:	-
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	DO-214AA, SMB
Supplier Device Package:	SMB (DO-214AA)

Please confirm the specifications of the products when ordering.
