TPSMB20A

TPSMB20A

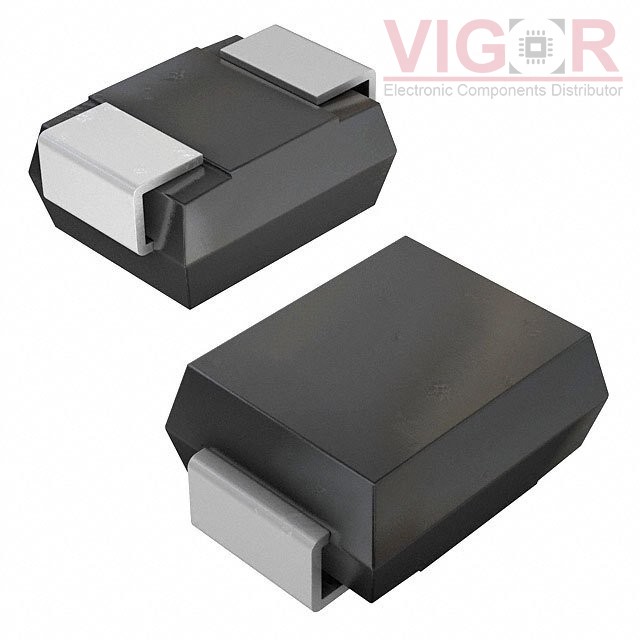

Image is for reference,
please contact us to get the real picture

Part No :

TPSMB20A

Manufacturer
Wickmann / Littelfuse
Description
TVS DIODE 17.1V 27.7V DO214AA
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jul 21 - Jul 25 2025
DataSheet
TPSMB20A PDF
Availability
0 pieces
Unit Price
$0.55000

Current price of TPSMB20A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TPSMB20A Specifications
Type Description
Series:Automotive, AEC-Q101, TPSMB
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):17.1V
Voltage - Breakdown (Min):19V
Voltage - Clamping (Max) @ Ipp:27.7V
Current - Peak Pulse (10/1000µs):22A
Power - Peak Pulse:600W
Power Line Protection:No
Applications:Automotive
Capacitance @ Frequency:-
Operating Temperature:-65°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Package / Case:DO-214AA, SMB
Supplier Device Package:DO-214AA (SMBJ)
