PESD5V0S2BQAZ

PESD5V0S2BQAZ

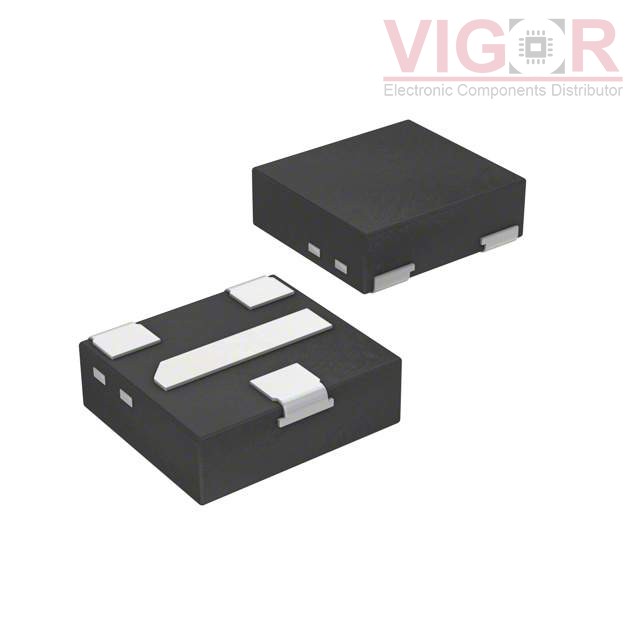

Image is for reference,
please contact us to get the real picture

Part No :

PESD5V0S2BQAZ

Manufacturer
Nexperia
Description
TVS DIODE 5V 11.5V DFN1010D-3
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jul 18 - Jul 22 2025
DataSheet
PESD5V0S2BQAZ PDF
Availability
1769 pieces
Unit Price
$0.44000

Current price of PESD5V0S2BQAZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PESD5V0S2BQAZ Specifications
Type Description
Series:Automotive, AEC-Q101
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Zener
Unidirectional Channels:-
Bidirectional Channels:2
Voltage - Reverse Standoff (Typ):5V (Max)
Voltage - Breakdown (Min):5.5V
Voltage - Clamping (Max) @ Ipp:11.5V
Current - Peak Pulse (10/1000µs):17.5A (8/20µs)
Power - Peak Pulse:-
Power Line Protection:No
Applications:Automotive
Capacitance @ Frequency:35pF @ 1MHz
Operating Temperature:-55°C ~ 125°C (TA)
Mounting Type:Surface Mount
Package / Case:3-XDFN Exposed Pad
Supplier Device Package:DFN1010D-3
