SMBJ22CA-HR

SMBJ22CA-HR

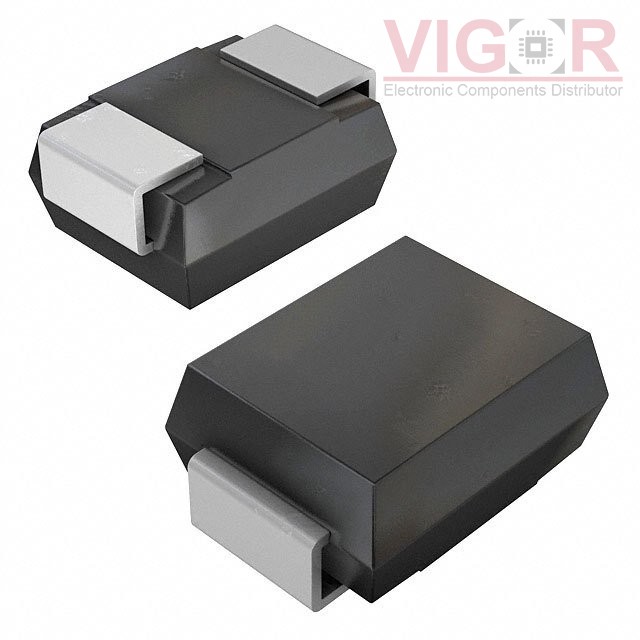

Image is for reference,
please contact us to get the real picture

Part No :

SMBJ22CA-HR

Manufacturer
Wickmann / Littelfuse
Description
TVS DIODE 22V 35.5V DO214AA
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jul 19 - Jul 23 2025
DataSheet
SMBJ22CA-HR PDF
Availability
0 pieces
Unit Price
$5.89680

Current price of SMBJ22CA-HR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SMBJ22CA-HR Specifications
Type Description
Series:SMBJ-HR
Package:Tape & Reel (TR)
Part Status:Active
Type:Zener
Unidirectional Channels:-
Bidirectional Channels:1
Voltage - Reverse Standoff (Typ):22V
Voltage - Breakdown (Min):24.4V
Voltage - Clamping (Max) @ Ipp:35.5V
Current - Peak Pulse (10/1000µs):16.9A
Power - Peak Pulse:600W
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:-
Operating Temperature:-65°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:DO-214AA, SMB
Supplier Device Package:DO-214AA (SMBJ)
