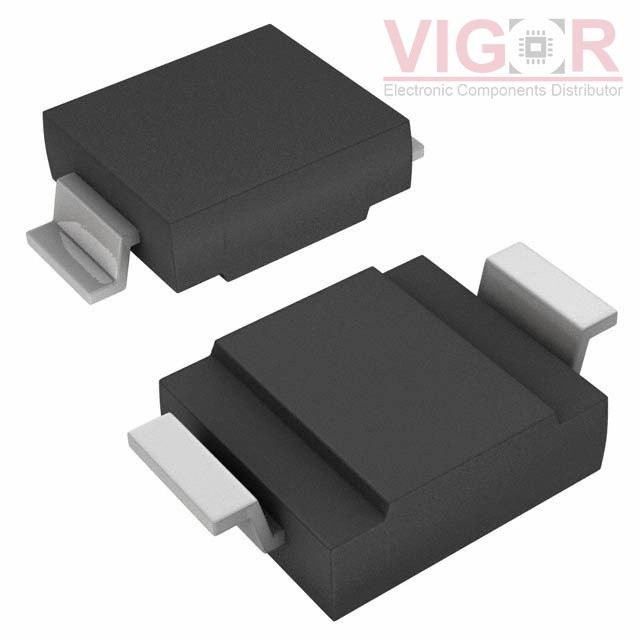

SMCG20AHE3/9AT

SMCG20AHE3/9AT

Image is for reference,
please contact us to get the real picture

Part No :

SMCG20AHE3/9AT

Manufacturer
Vishay General Semiconductor – Diodes Division
Description
TVS DIODE 20V 32.4V DO215AB
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
SMCG20AHE3/9AT PDF
Availability
0 pieces
Unit Price
$0.46760

Current price of SMCG20AHE3/9AT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SMCG20AHE3/9AT Specifications
Type Description
Series:Automotive, AEC-Q101, TransZorb®
Package:Tape & Reel (TR)
Part Status:Active
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):20V
Voltage - Breakdown (Min):22.2V
Voltage - Clamping (Max) @ Ipp:32.4V
Current - Peak Pulse (10/1000µs):46.3A
Power - Peak Pulse:1500W (1.5kW)
Power Line Protection:No
Applications:Automotive
Capacitance @ Frequency:-
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:DO-215AB, SMC Gull Wing
Supplier Device Package:DO-215AB (SMCG)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 1SMA16CAT3G

1SMA16CAT3G

TVS DIODE 16V 26V 6TDFN
HOT SA54A-E3/54

SA54A-E3/54

TVS DIODE 54V 87.1V DO204AC

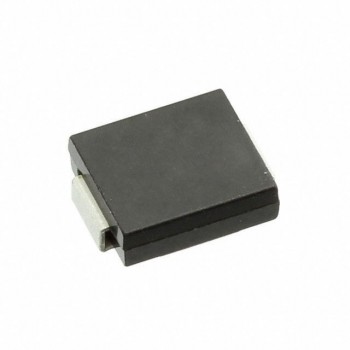

HOT TV30C6V5JB-G
