SMDJ80

SMDJ80

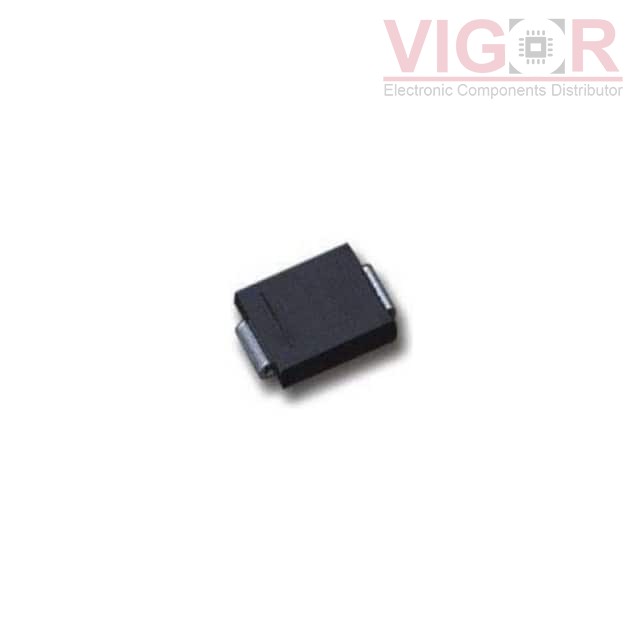

Image is for reference,
please contact us to get the real picture

Part No :

SMDJ80

Manufacturer
Meritek
Description
TVS DIODE 80V 143.2V DO-214AB (S
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
SMDJ80 PDF
Availability
0 pieces
Unit Price
$0.51618

Current price of SMDJ80 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SMDJ80 Specifications
Type Description
Series:SMDJ
Package:Tape & Reel (TR)
Part Status:Active
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):80V
Voltage - Breakdown (Min):88.96V
Voltage - Clamping (Max) @ Ipp:143.2V
Current - Peak Pulse (10/1000µs):20.95A
Power - Peak Pulse:3000W (3kW)
Power Line Protection:-
Applications:General Purpose
Capacitance @ Frequency:-
Operating Temperature:-55°C ~ 150°C
Mounting Type:Surface Mount
Package / Case:DO-214AB (SMC)
Supplier Device Package:-
