SP36-01WTG-C-HV

SP36-01WTG-C-HV

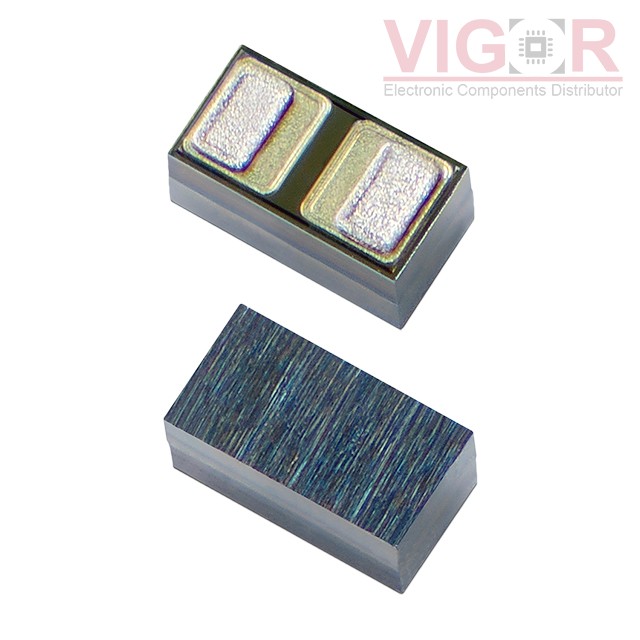

Image is for reference,
please contact us to get the real picture

Part No :

SP36-01WTG-C-HV

Manufacturer
Wickmann / Littelfuse
Description
TVS DIODE 36V 48V 2FLIPCHIP
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Aug 02 - Aug 06 2025
DataSheet
SP36-01WTG-C-HV PDF
Availability
2147483647 pieces
Unit Price
$0.36000

Current price of SP36-01WTG-C-HV is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SP36-01WTG-C-HV Specifications
Type Description
Series:SPXX, SPA®
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Zener
Unidirectional Channels:-
Bidirectional Channels:1
Voltage - Reverse Standoff (Typ):36V (Max)
Voltage - Breakdown (Min):40V
Voltage - Clamping (Max) @ Ipp:48V
Current - Peak Pulse (10/1000µs):1A (8/20µs)
Power - Peak Pulse:100W
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:10pF @ 1MHz
Operating Temperature:-40°C ~ 125°C (TJ)
Mounting Type:Surface Mount
Package / Case:2-XFDFN, FCDFN
Supplier Device Package:2-FlipChip
