ESD5V0D5B-TP

ESD5V0D5B-TP

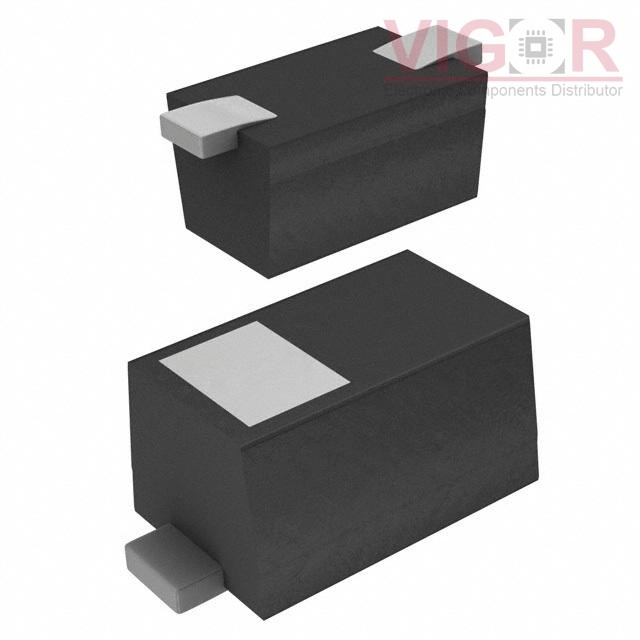

Image is for reference,
please contact us to get the real picture

Part No :

ESD5V0D5B-TP

Manufacturer
Micro Commercial Components (MCC)
Description
TVS DIODE 5V 13V SOD523
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Aug 19 - Aug 23 2025
DataSheet
ESD5V0D5B-TP PDF
Availability
32819 pieces
Unit Price
$0.52000

Current price of ESD5V0D5B-TP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ESD5V0D5B-TP Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Zener
Unidirectional Channels:-
Bidirectional Channels:1
Voltage - Reverse Standoff (Typ):5V (Max)
Voltage - Breakdown (Min):5.8V
Voltage - Clamping (Max) @ Ipp:13V
Current - Peak Pulse (10/1000µs):12A
Power - Peak Pulse:150W
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:27pF @ 1MHz
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:SC-79, SOD-523
Supplier Device Package:SOD-523
