SMDJ14A-HR

SMDJ14A-HR

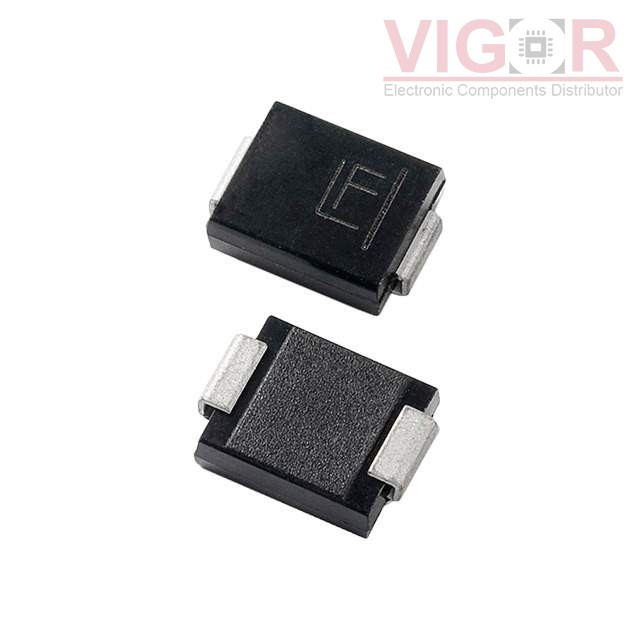

Image is for reference,
please contact us to get the real picture

Part No :

SMDJ14A-HR

Manufacturer
Wickmann / Littelfuse
Description
TVS DIODE 14V 23.2V DO214AB
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jul 31 - Aug 04 2025
DataSheet
SMDJ14A-HR PDF
Availability
0 pieces
Unit Price
$14.08428

Current price of SMDJ14A-HR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SMDJ14A-HR Specifications
Type Description
Series:SMDJ-HR
Package:Tape & Reel (TR)
Part Status:Active
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):14V
Voltage - Breakdown (Min):15.6V
Voltage - Clamping (Max) @ Ipp:23.2V
Current - Peak Pulse (10/1000µs):129.3A
Power - Peak Pulse:3000W (3kW)
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:-
Operating Temperature:-65°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:DO-214AB, SMC
Supplier Device Package:DO-214AB (SMCJ)
