VESD03C1-02V-G3-08

VESD03C1-02V-G3-08

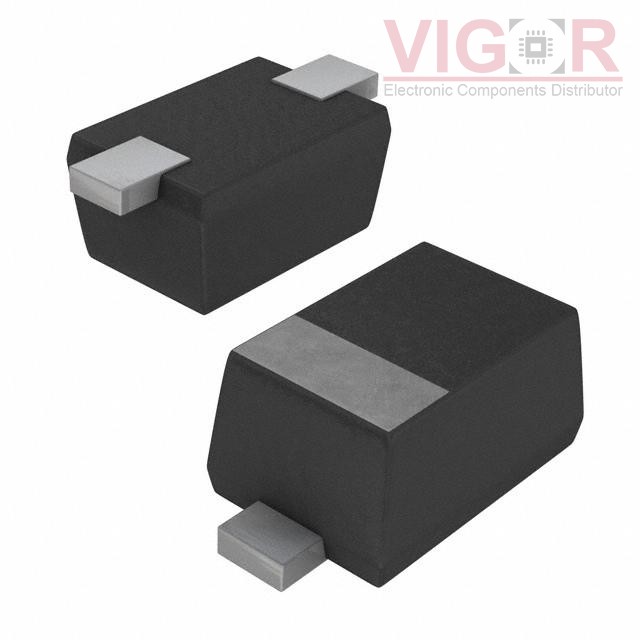

Image is for reference,
please contact us to get the real picture

Part No :

VESD03C1-02V-G3-08

Manufacturer
Vishay General Semiconductor – Diodes Division
Description
ESD PROTECTION DIODE SOD-523
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
VESD03C1-02V-G3-08 PDF
Availability
16042 pieces
Unit Price
$0.42000

Current price of VESD03C1-02V-G3-08 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VESD03C1-02V-G3-08 Specifications
Type Description
Series:Automotive, AEC-Q101
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):3V (Max)
Voltage - Breakdown (Min):4.4V
Voltage - Clamping (Max) @ Ipp:8.7V
Current - Peak Pulse (10/1000µs):11.6A (8/20µs)
Power - Peak Pulse:100W
Power Line Protection:No
Applications:Automotive
Capacitance @ Frequency:112pF @ 1MHz
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:SC-79, SOD-523
Supplier Device Package:SOD-523
