EGUARD0524PTR

EGUARD0524PTR

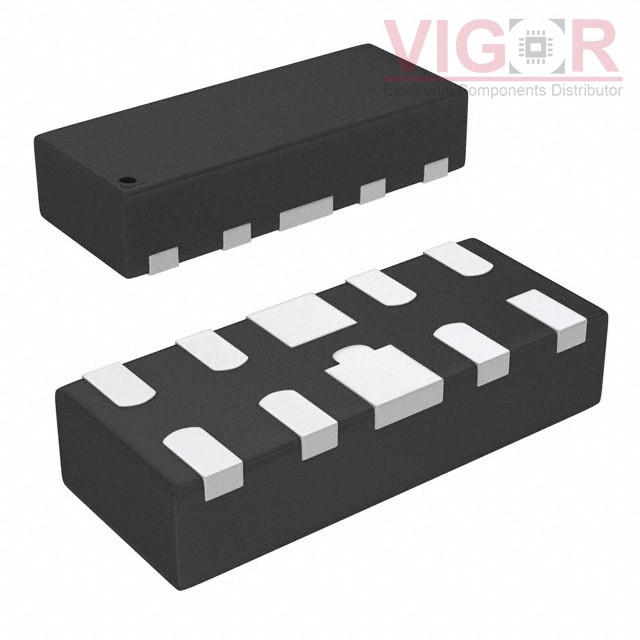

Image is for reference,
please contact us to get the real picture

Part No :

EGUARD0524PTR

Manufacturer
SMC Diode Solutions
Description
TVS DIODE 5V 17V 10DFNWB
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
EGUARD0524PTR PDF
Availability
5961 pieces
Unit Price
$0.43000

Current price of EGUARD0524PTR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EGUARD0524PTR Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Steering (Rail to Rail)
Unidirectional Channels:4
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):5V (Max)
Voltage - Breakdown (Min):6V
Voltage - Clamping (Max) @ Ipp:17V
Current - Peak Pulse (10/1000µs):7A (8/20µs)
Power - Peak Pulse:150W
Power Line Protection:No
Applications:HDMI
Capacitance @ Frequency:0.65pF @ 1MHz
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:10-UFDFN
Supplier Device Package:10-DFNWB (2.5x1)
