ESDH12VD1-TP

ESDH12VD1-TP

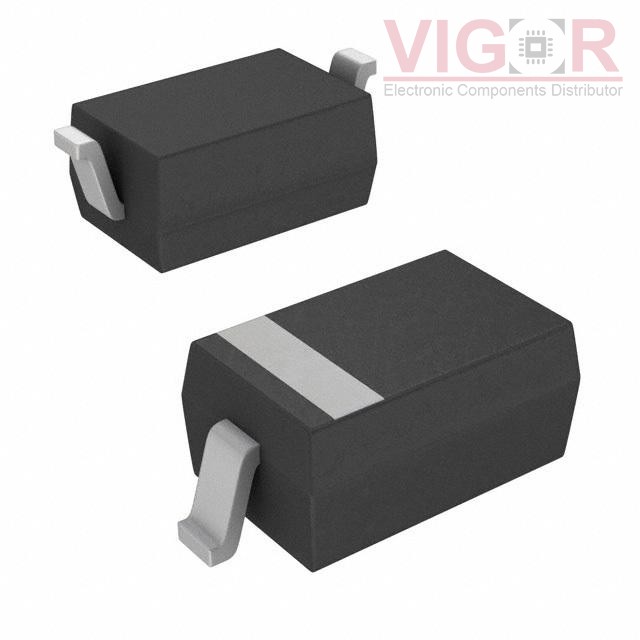

Image is for reference,
please contact us to get the real picture

Part No :

ESDH12VD1-TP

Manufacturer
Micro Commercial Components (MCC)
Description
TVS DIODE 12V 35V SOD123
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
ESDH12VD1-TP PDF
Availability
0 pieces
Unit Price
$0.47000

Current price of ESDH12VD1-TP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ESDH12VD1-TP Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):12V (Max)
Voltage - Breakdown (Min):13V
Voltage - Clamping (Max) @ Ipp:35V
Current - Peak Pulse (10/1000µs):120A (8/20µs)
Power - Peak Pulse:4200W (4.2kW)
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:620pF @ 1MHz
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:SOD-123
Supplier Device Package:SOD-123
