SMCG100A-E3/9AT

SMCG100A-E3/9AT

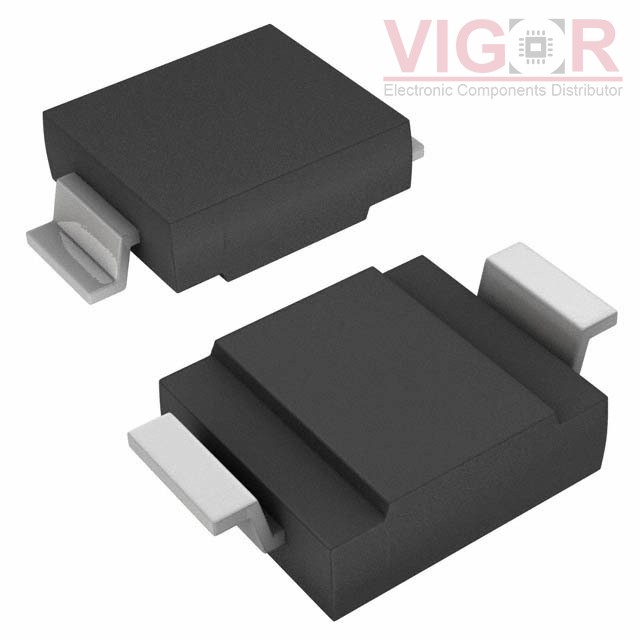

Image is for reference,
please contact us to get the real picture

Part No :

SMCG100A-E3/9AT

Manufacturer
Vishay General Semiconductor – Diodes Division
Description
TVS DIODE 100V 162V DO215AB
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
SMCG100A-E3/9AT PDF
Availability
0 pieces
Unit Price
$0.43420

Current price of SMCG100A-E3/9AT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SMCG100A-E3/9AT Specifications
Type Description
Series:TransZorb®
Package:Tape & Reel (TR)
Part Status:Active
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):100V
Voltage - Breakdown (Min):111V
Voltage - Clamping (Max) @ Ipp:162V
Current - Peak Pulse (10/1000µs):9.3A
Power - Peak Pulse:1500W (1.5kW)
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:-
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:DO-215AB, SMC Gull Wing
Supplier Device Package:DO-215AB (SMCG)
