NSP8814MUTAG

NSP8814MUTAG

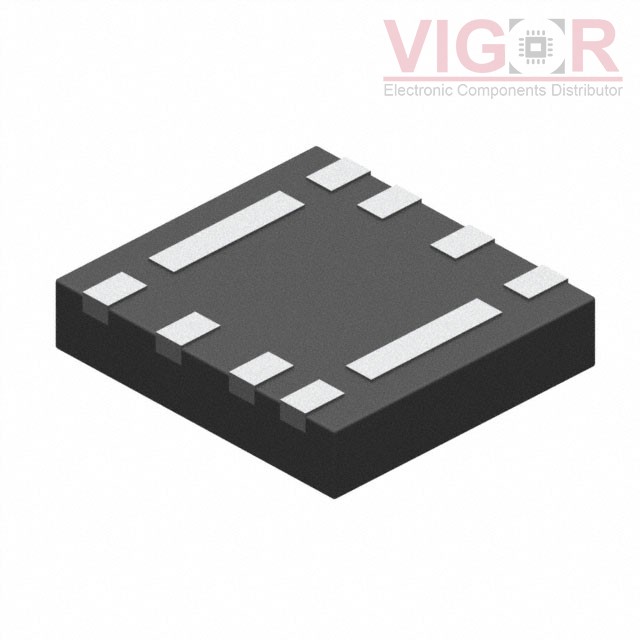

Image is for reference,
please contact us to get the real picture

Part No :

NSP8814MUTAG

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
TVS DIODE 3V 15V 8UDFN
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
NSP8814MUTAG PDF
Availability
1125 pieces
Unit Price
$0.99000

Current price of NSP8814MUTAG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NSP8814MUTAG Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Steering (Rail to Rail)
Unidirectional Channels:4
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):3V (Max)
Voltage - Breakdown (Min):3.2V
Voltage - Clamping (Max) @ Ipp:15V
Current - Peak Pulse (10/1000µs):35A (8/20µs)
Power - Peak Pulse:-
Power Line Protection:No
Applications:Ethernet
Capacitance @ Frequency:5pF @ 1MHz (Max)
Operating Temperature:-55°C ~ 125°C (TJ)
Mounting Type:Surface Mount
Package / Case:8-UDFN Exposed Pad
Supplier Device Package:8-UDFN (2x2.2)
