SZESD8472MUT5G

SZESD8472MUT5G

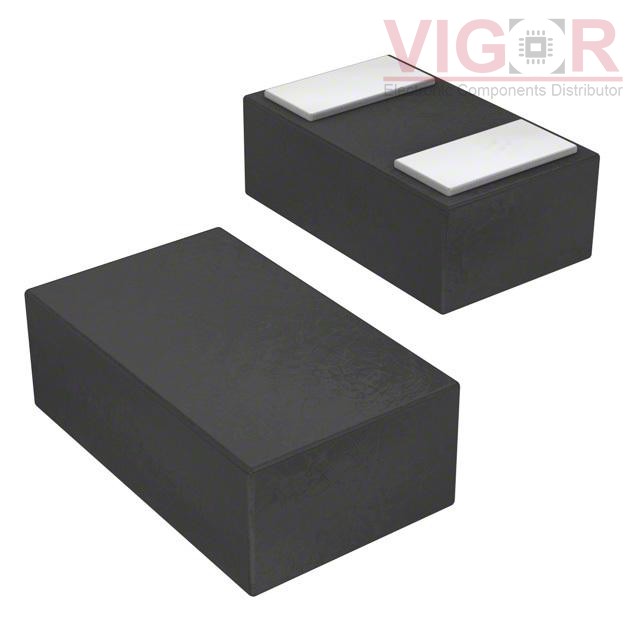

Image is for reference,
please contact us to get the real picture

Part No :

SZESD8472MUT5G

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
TVS DIODE 5.3V 14V 2X3DFN
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
SZESD8472MUT5G PDF
Availability
10000 pieces
Unit Price
$0.43000

Current price of SZESD8472MUT5G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SZESD8472MUT5G Specifications
Type Description
Series:Automotive, AEC-Q101
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Zener
Unidirectional Channels:-
Bidirectional Channels:1
Voltage - Reverse Standoff (Typ):5.3V (Max)
Voltage - Breakdown (Min):7V
Voltage - Clamping (Max) @ Ipp:14V
Current - Peak Pulse (10/1000µs):3A (8/20µs)
Power - Peak Pulse:-
Power Line Protection:No
Applications:Automotive, RF Antenna
Capacitance @ Frequency:0.2pF @ 1MHz
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:0201 (0603 Metric)
Supplier Device Package:2-X3DFN (0.62x0.32)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT MXLSMBJ58CA

MXLSMBJ58CA

TVS DIODE 58V 93.6V DO214AA

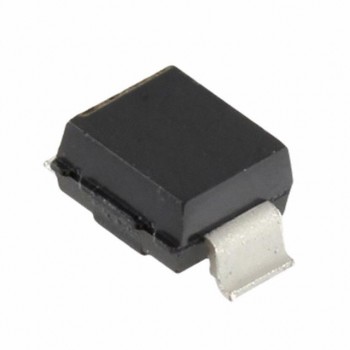

HOT MXLSMBG30AE3
