TLD5S40AH

TLD5S40AH

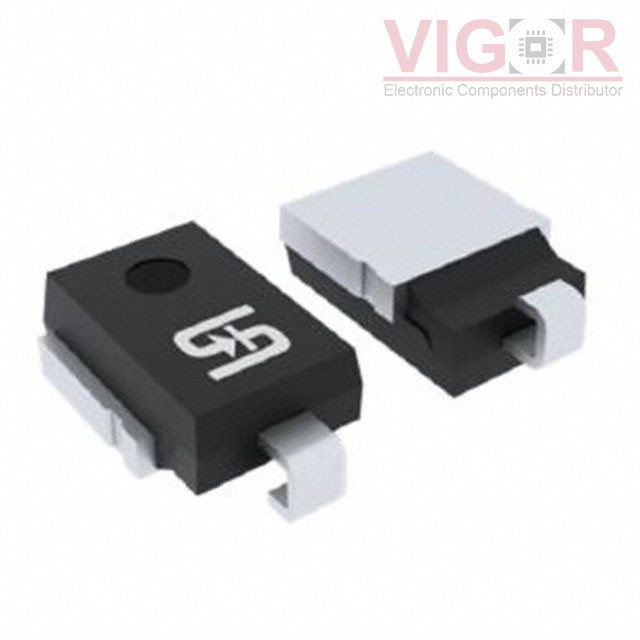

Image is for reference,
please contact us to get the real picture

Part No :

TLD5S40AH

Manufacturer
TSC (Taiwan Semiconductor)
Description
3600W,10V-43V SURFACE MOUNT TRAN
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Aug 13 - Aug 17 2025
DataSheet
TLD5S40AH PDF
Availability
0 pieces
Unit Price
$1.49213

Current price of TLD5S40AH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLD5S40AH Specifications
Type Description
Series:Automotive, AEC-Q101
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):40V
Voltage - Breakdown (Min):44.4V
Voltage - Clamping (Max) @ Ipp:64.5V
Current - Peak Pulse (10/1000µs):56A
Power - Peak Pulse:2800W (2.8kW)
Power Line Protection:No
Applications:Automotive
Capacitance @ Frequency:-
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Package / Case:DO-218AB
Supplier Device Package:DO-218AB
