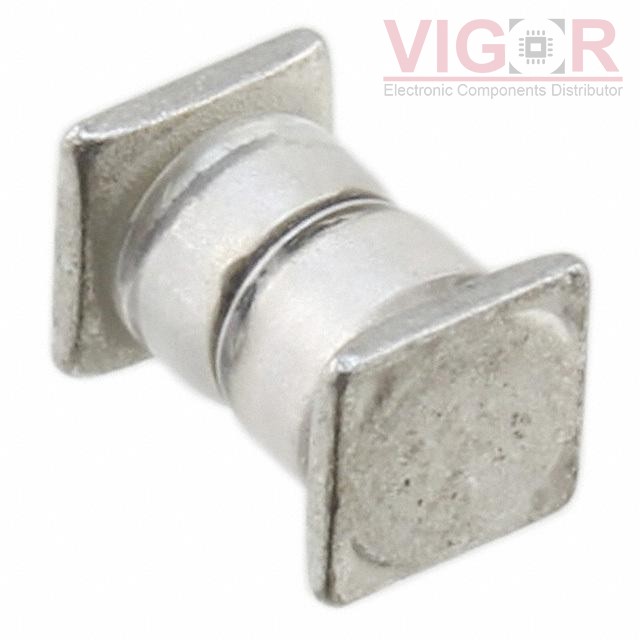

JANTXV1N6114US

JANTXV1N6114US

Image is for reference,
please contact us to get the real picture

Part No :

JANTXV1N6114US

Manufacturer
Microsemi
Description
TVS DIODE 16.7V 32.03V B SQ-MELF
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
JANTXV1N6114US PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of JANTXV1N6114US is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JANTXV1N6114US Specifications
Type Description
Series:Military, MIL-PRF-19500/516
Package:Bulk
Part Status:Active
Type:Zener
Unidirectional Channels:-
Bidirectional Channels:1
Voltage - Reverse Standoff (Typ):16.7V
Voltage - Breakdown (Min):19.86V
Voltage - Clamping (Max) @ Ipp:32.03V
Current - Peak Pulse (10/1000µs):15.58A
Power - Peak Pulse:500W
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:-
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Package / Case:SQ-MELF, B
Supplier Device Package:B, SQ-MELF
