VCUT05F1-HD0-G4-08

VCUT05F1-HD0-G4-08

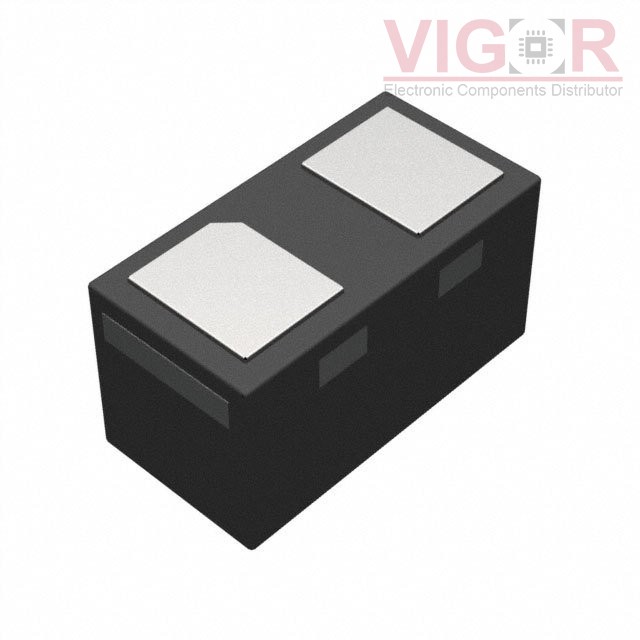

Image is for reference,
please contact us to get the real picture

Part No :

VCUT05F1-HD0-G4-08

Manufacturer
Vishay General Semiconductor – Diodes Division
Description
ESD PROTECTION DIODE LLP0603-G4
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Aug 25 - Aug 29 2025
DataSheet
VCUT05F1-HD0-G4-08 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of VCUT05F1-HD0-G4-08 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VCUT05F1-HD0-G4-08 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Type:Zener
Unidirectional Channels:-
Bidirectional Channels:1
Voltage - Reverse Standoff (Typ):5.5V (Max)
Voltage - Breakdown (Min):5.5V
Voltage - Clamping (Max) @ Ipp:14V
Current - Peak Pulse (10/1000µs):4A (8/20µs)
Power - Peak Pulse:60W
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:14pF @ 1MHz
Operating Temperature:-40°C ~ 125°C (TJ)
Mounting Type:Surface Mount
Package / Case:0201 (0603 Metric)
Supplier Device Package:LLP0603-2L
