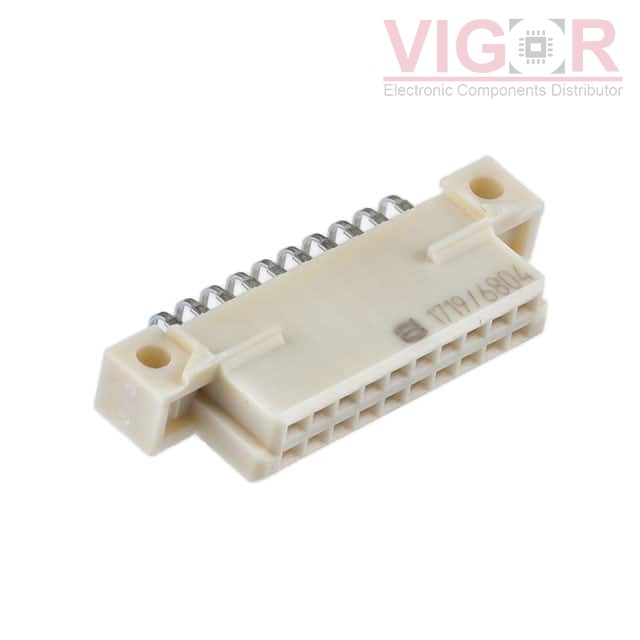

Image is for reference,
please contact us to get the real picture

Part No :

09752206804

Manufacturer
HARTING
Description
DIN 3Q FEMALE ANGLED 20PIN PL2
Catalog
Backplane Connectors - DIN 41612
Shipped from
HK warehouse
Expected Shipping Date
Aug 07 - Aug 11 2025
DataSheet
09752206804 PDF
Availability
50 pieces
Unit Price
$7.18000

Current price of 09752206804 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

09752206804 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Connector Type:Receptacle, Female Sockets
Number of Positions:20
Number of Positions Loaded:All
Pitch:0.100" (2.54mm)
Number of Rows:2
Style:3Q
Level, Class:1
Mounting Type:Through Hole, Right Angle
Termination:Solder
Features:-
Contact Finish:Gold-Palladium
Contact Finish Thickness:-
