SJ2-3593B-SMT-TR

SJ2-3593B-SMT-TR

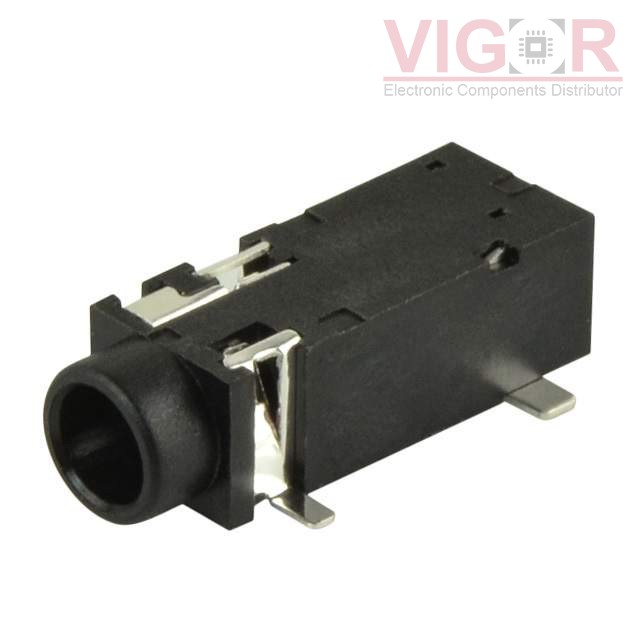

Image is for reference,
please contact us to get the real picture

Part No :

SJ2-3593B-SMT-TR

Manufacturer
CUI Devices
Description
AUDIO JACK, 3.5 MM, RT, 3 CONDUC
Catalog
Barrel - Audio Connectors
Shipped from
HK warehouse
Expected Shipping Date
Aug 21 - Aug 25 2025
DataSheet
SJ2-3593B-SMT-TR PDF
Availability
23 pieces
Unit Price
$1.18000

Current price of SJ2-3593B-SMT-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SJ2-3593B-SMT-TR Specifications
Type Description
Series:SJ2
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Phone Jack
Gender:Female
Signal Lines:Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter:3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter:0.142" (3.60mm)
Number of Positions/Contacts:3 Conductors, 4 Contacts
Internal Switch(s):Single Switch
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Shielding:Unshielded
Features:Board Guide
Insulation Color:-
Operating Temperature:-25°C ~ 85°C
