SJ-3566BN

SJ-3566BN

Image is for reference,
please contact us to get the real picture

Part No :

SJ-3566BN

Manufacturer
CUI Devices
Description
CONN JACK MONO R/A 3.5MM PCB
Catalog
Barrel - Audio Connectors
Shipped from
HK warehouse
Expected Shipping Date
May 21 - May 25 2024
DataSheet
SJ-3566BN PDF
Availability
0 pieces
Unit Price
$1.22149

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of SJ-3566BN is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

SJ-3566BN Specifications
Type Description
Series:SJ
Package:Tray
Part Status:Active
Connector Type:Phone Jack
Gender:Female
Signal Lines:Mono
Industry Recognized Mating Diameter:3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter:0.142" (3.60mm)
Number of Positions/Contacts:2 Conductors, 6 Contacts
Internal Switch(s):Single Switch, SPDT Switch
Mounting Type:Through Hole, Right Angle
Termination:Solder
Shielding:Unshielded
Features:Board Guide
Insulation Color:-
Operating Temperature:-25°C ~ 85°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

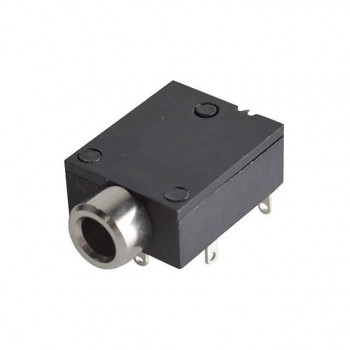

HOT SJ1-3513N

SJ1-3513N

CONN JACK STEREO 3.5MM R/A

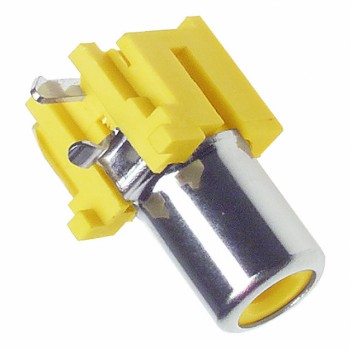

HOT RCJ-044
