SJ1-3515-SMT-TR

SJ1-3515-SMT-TR

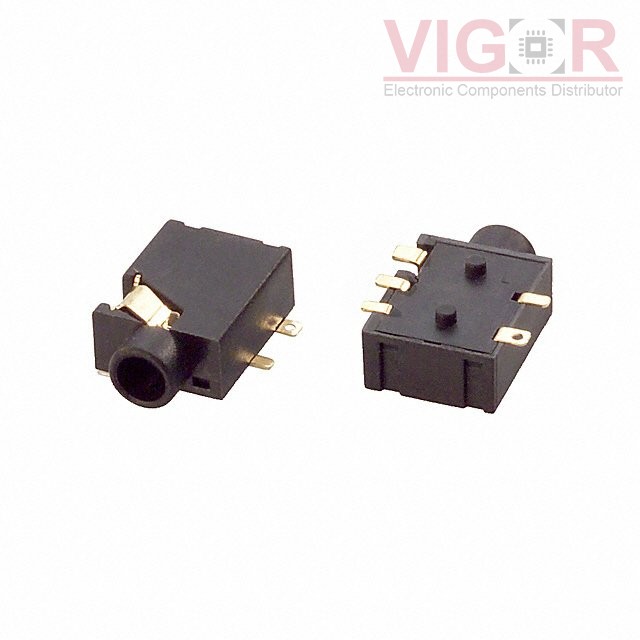

Image is for reference,
please contact us to get the real picture

Part No :

SJ1-3515-SMT-TR

Manufacturer
CUI Devices
Description
CONN JACK STEREO 3.5MM SMD R/A
Catalog
Barrel - Audio Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
SJ1-3515-SMT-TR PDF
Availability
670 pieces
Unit Price
$1.20000

Current price of SJ1-3515-SMT-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SJ1-3515-SMT-TR Specifications
Type Description
Series:SJ1
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Phone Jack
Gender:Female
Signal Lines:Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter:3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter:0.142" (3.60mm)
Number of Positions/Contacts:3 Conductors, 5 Contacts
Internal Switch(s):Two Switches
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Shielding:Unshielded
Features:Board Guide
Insulation Color:-
Operating Temperature:-25°C ~ 85°C
