SJD1-3201-54

SJD1-3201-54

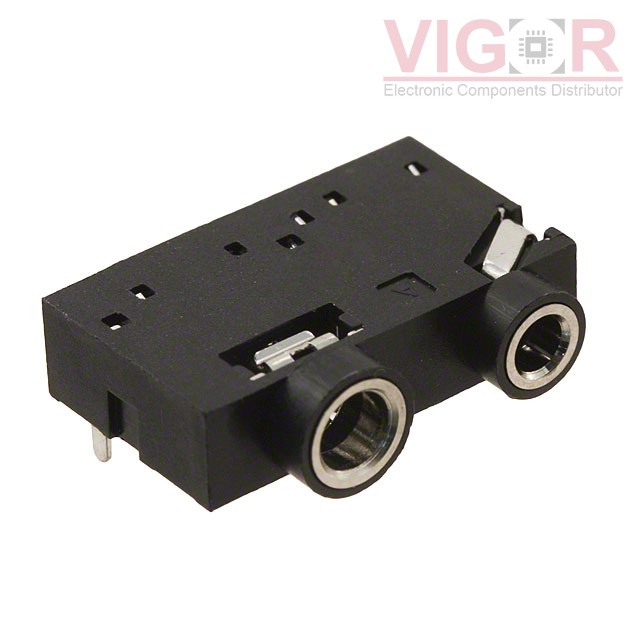

Image is for reference,
please contact us to get the real picture

Part No :

SJD1-3201-54

Manufacturer
CUI Devices
Description
CONN JACK DUAL STEREO 2.5MM R/A
Catalog
Barrel - Audio Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
SJD1-3201-54 PDF
Availability
0 pieces
Unit Price
$1.78000

Current price of SJD1-3201-54 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SJD1-3201-54 Specifications
Type Description
Series:-
Package:Bag
Part Status:Active
Connector Type:Phone Jack, Dual
Gender:Female
Signal Lines:Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter:2.50mm (3/32", Sub Mini, Miniature) - Headphone
Actual Diameter:0.102" (2.60mm), 0.142" (3.60mm)
Number of Positions/Contacts:2 Sets of 3 Conductors, 9 Contacts
Internal Switch(s):Single Switch, Two Switches
Mounting Type:Through Hole, Right Angle
Termination:Solder
Shielding:Unshielded
Features:Board Guide
Insulation Color:-
Operating Temperature:-20°C ~ 85°C
