Type | Description |
---|---|
Series: | - |
Package: | Tape & Reel (TR)Cut Tape (CT) |
Part Status: | Active |
Connector Type: | Jack |
Gender: | Male |
Industry Recognized Mating Diameter: | 1.30mm ID (0.051"), 3.50mm OD (0.138") |
Actual Diameter: | 0.051" (1.30mm ID), 0.154" (3.90mm OD) |
Number of Positions/Contacts: | 2 Conductors, 3 Contacts |
Internal Switch(s): | Single Switch, Normally Closed |
Mounting Type: | Surface Mount, Right Angle |
Mounting Feature: | - |
Termination: | Solder |
Shielding: | Unshielded |
Features: | Board Guide |
Insulation Color: | - |
Voltage - Rated: | 24VDC |
Current Rating (Amps): | 3.5 A |
Mating Length/Depth: | 0.244" (6.20mm) |
Ingress Protection: | - |
Material Flammability Rating: | UL94 V-0 |

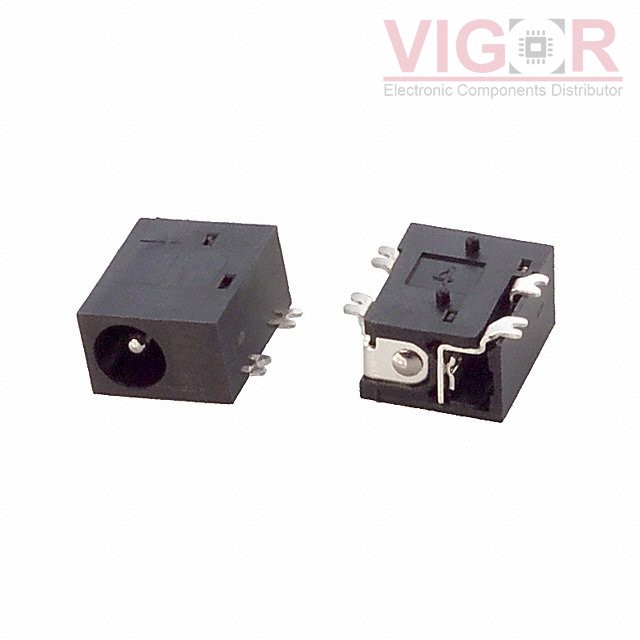

CONN PWR JACK 1.3X3.4MM SOLDER
