PJ-036C

PJ-036C

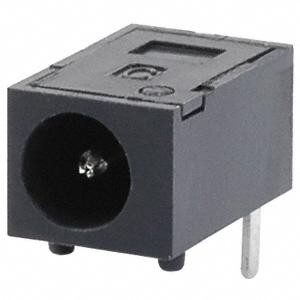

Image is for reference,
please contact us to get the real picture

Part No :

PJ-036C

Manufacturer
CUI Devices
Description
CONN PWR JACK 1X3.4MM SOLDER
Catalog
Barrel - Power Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
PJ-036C PDF
Availability
0 pieces
Unit Price
$0.34080

Current price of PJ-036C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PJ-036C Specifications
Type Description
Series:-
Package:Bag
Part Status:Active
Connector Type:Jack
Gender:Male
Industry Recognized Mating Diameter:1.00mm ID (0.039"), 3.40mm OD (0.134")
Actual Diameter:0.039" (1.00mm ID), 0.150" (3.80mm OD)
Number of Positions/Contacts:2 Conductors, 3 Contacts
Internal Switch(s):Single Switch, Normally Closed
Mounting Type:Through Hole, Right Angle
Mounting Feature:-
Termination:Solder
Shielding:Unshielded
Features:Board Guide
Insulation Color:-
Voltage - Rated:24VDC
Current Rating (Amps):2 A
Mating Length/Depth:0.260" (6.60mm)
Ingress Protection:-
Material Flammability Rating:UL94 V-0
