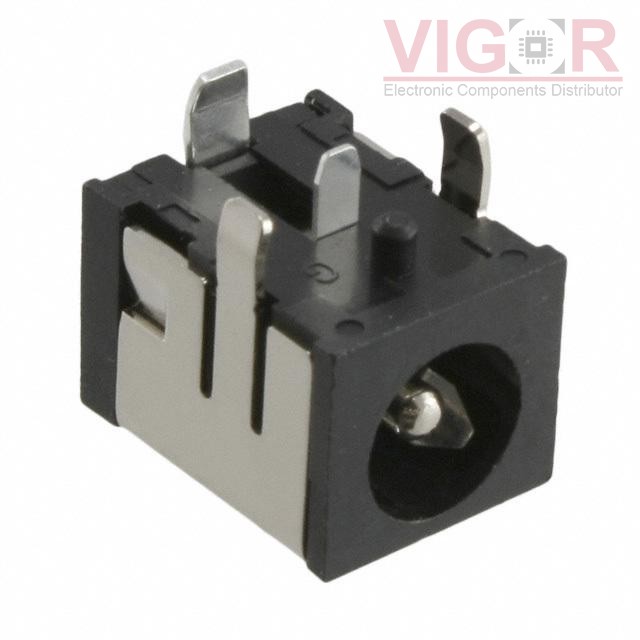

PJ-063AH

Image is for reference,
please contact us to get the real picture

Part No :: PJ-063AH

Manufacturer: CUI Devices

Description: CONN PWR JACK 2X5.5MM SOLDER

Catalog: Barrel - Power Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 26 - Jul 30 2025

DataSheet: PJ-063AH PDF

Availability: 48471 pieces

Unit Price: ~~$1.37000~~

Current price of PJ-063AH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PJ-063AH Specifications

Type	Description
Series:	-
Package:	Bag
Part Status:	Active
Connector Type:	Jack
Gender:	Male
Industry Recognized Mating Diameter:	2.10mm ID (0.083"), 5.50mm OD (0.217")
Actual Diameter:	0.079" (2.00mm ID), 0.256" (6.50mm OD)
Number of Positions/Contacts:	2 Conductors, 2 Contacts
Internal Switch(s):	Does Not Contain Switch
Mounting Type:	Through Hole, Right Angle
Mounting Feature:	-
Termination:	Solder
Shielding:	Shielded
Features:	Board Guide
Insulation Color:	-
Voltage - Rated:	24VDC
Current Rating (Amps):	8 A
Mating Length/Depth:	0.348" (8.85mm)
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

761KH

PLUG, 2.5MM ID, LONG BARREL, LOC

HOT

L712RAH

JACK, 2.5MM PIN, LONG BUSHING, R

HOT

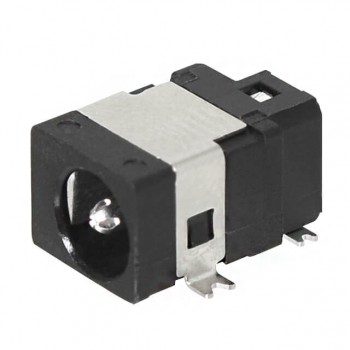

PJ-093H-SMT-TR
