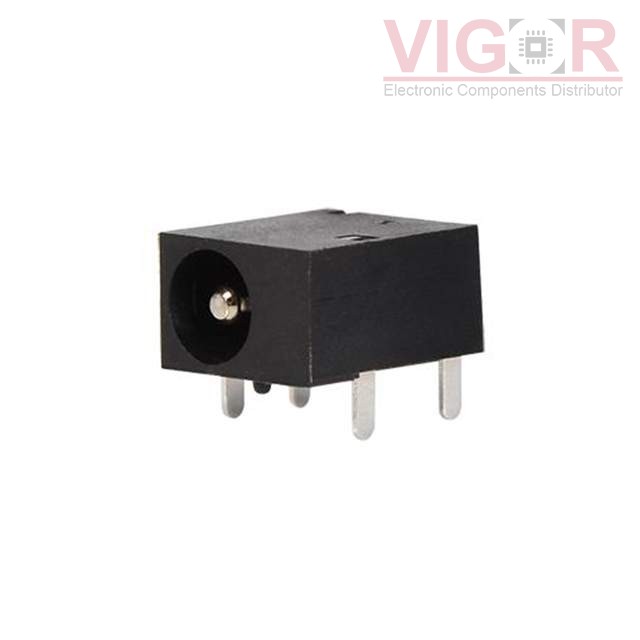

PJ-054H

PJ-054H

Image is for reference,
please contact us to get the real picture

Part No :

PJ-054H

Manufacturer
CUI Devices
Description
CONN PWR JACK 1.7X4MM SOLDER
Catalog
Barrel - Power Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
PJ-054H PDF
Availability
516 pieces
Unit Price
$0.92000

Current price of PJ-054H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PJ-054H Specifications
Type Description
Series:-
Package:Bag
Part Status:Active
Connector Type:Jack
Gender:Male
Industry Recognized Mating Diameter:1.70mm ID (0.067"), 4.00mm OD (0.157") EIAJ-2
Actual Diameter:0.065" (1.65mm ID), 0.173" (4.40mm OD)
Number of Positions/Contacts:2 Conductors, 3 Contacts
Internal Switch(s):Single Switch, Normally Closed
Mounting Type:Through Hole, Right Angle
Mounting Feature:-
Termination:Solder
Shielding:Unshielded
Features:Board Guide
Insulation Color:-
Voltage - Rated:24VDC
Current Rating (Amps):5 A
Mating Length/Depth:0.244" (6.20mm)
Ingress Protection:-
Material Flammability Rating:UL94 V-0
