PJ-017D

PJ-017D

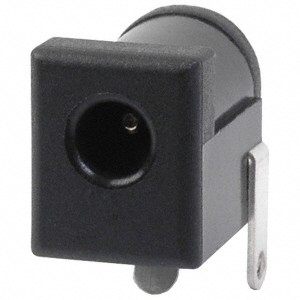

Image is for reference,
please contact us to get the real picture

Part No :

PJ-017D

Manufacturer
CUI Devices
Description
CONN POWER JACK 1.3X3.4MM
Catalog
Barrel - Power Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
PJ-017D PDF
Availability
1971 pieces
Unit Price
$0.60000

Current price of PJ-017D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PJ-017D Specifications
Type Description
Series:-
Package:Bag
Part Status:Active
Connector Type:Jack
Gender:Male
Industry Recognized Mating Diameter:1.30mm ID (0.051"), 3.50mm OD (0.138")
Actual Diameter:0.051" (1.30mm ID), 0.150" (3.80mm OD)
Number of Positions/Contacts:2 Conductors, 3 Contacts
Internal Switch(s):Single Switch, Normally Closed
Mounting Type:Through Hole, Right Angle
Mounting Feature:-
Termination:Kinked Pin
Shielding:Unshielded
Features:-
Insulation Color:-
Voltage - Rated:24VDC
Current Rating (Amps):2 A
Mating Length/Depth:0.360" (9.15mm)
Ingress Protection:-
Material Flammability Rating:UL94 V-0
