54-00138

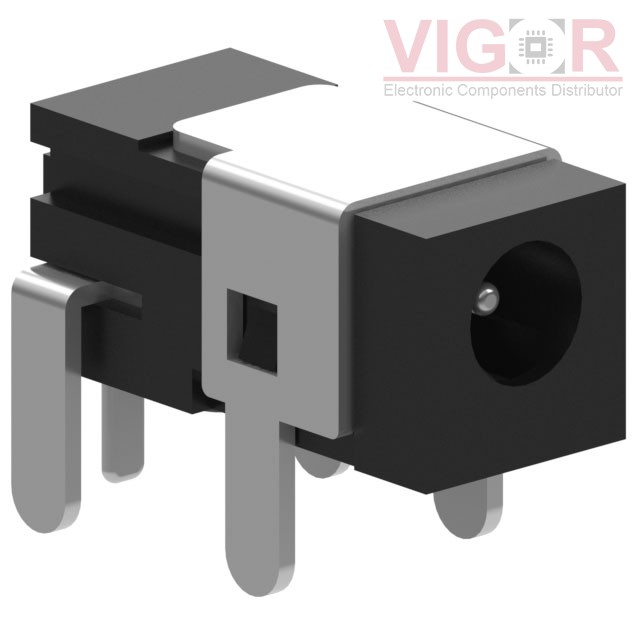

Image is for reference,
please contact us to get the real picture

Part No :: 54-00138

Manufacturer: Tensility International Corporation

Description: CONN JACK R/A PCB 2.35X0.7MM

Catalog: Barrel - Power Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 20 - Jul 24 2025

DataSheet: 54-00138 PDF

Availability: 0 pieces

Unit Price: ~~$0.28612~~

Current price of 54-00138 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

54-00138 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Connector Type:	Jack
Gender:	Male
Industry Recognized Mating Diameter:	0.70mm ID (0.028"), 2.35mm OD (0.093")
Actual Diameter:	0.028" (0.70mm ID), 0.093" (2.35mm OD)
Number of Positions/Contacts:	2 Conductors, 3 Contacts
Internal Switch(s):	Single Switch, Normally Closed
Mounting Type:	Through Hole, Right Angle
Mounting Feature:	-
Termination:	Solder
Shielding:	Shielded
Features:	Board Guide
Insulation Color:	Black
Voltage - Rated:	48V
Current Rating (Amps):	6 A
Mating Length/Depth:	-
Ingress Protection:	-
Material Flammability Rating:	-

Please confirm the specifications of the products when ordering.
