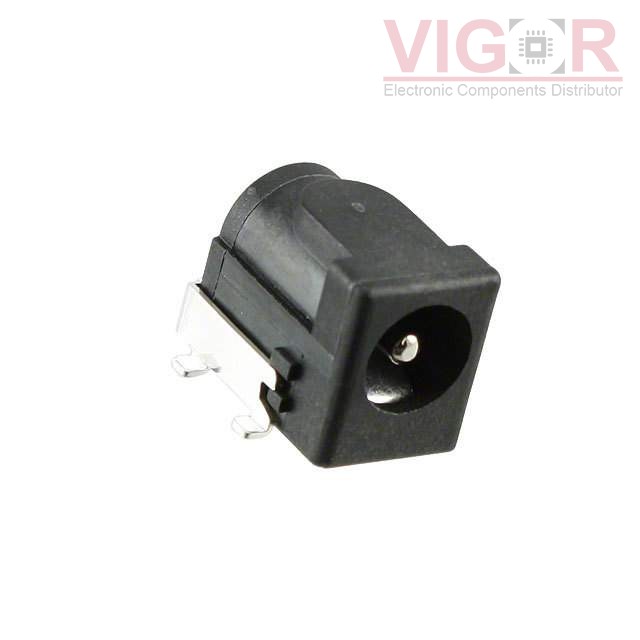

PJ-002AH-SMT-1

PJ-002AH-SMT-1

Image is for reference,
please contact us to get the real picture

Part No :

PJ-002AH-SMT-1

Manufacturer
CUI Devices
Description
CONN PWR JACK 2X5.5MM SOLDER
Catalog
Barrel - Power Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
PJ-002AH-SMT-1 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of PJ-002AH-SMT-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PJ-002AH-SMT-1 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
Connector Type:Jack
Gender:Male
Industry Recognized Mating Diameter:2.10mm ID (0.083"), 5.50mm OD (0.217")
Actual Diameter:0.079" (2.00mm ID), 0.256" (6.50mm OD)
Number of Positions/Contacts:2 Conductors, 3 Contacts
Internal Switch(s):Single Switch, Normally Closed
Mounting Type:-
Mounting Feature:-
Termination:Solder Eyelet(s)
Shielding:Unshielded
Features:-
Insulation Color:-
Voltage - Rated:24VDC
Current Rating (Amps):5 A
Mating Length/Depth:0.354" (9.00mm)
Ingress Protection:-
Material Flammability Rating:UL94 V-0
