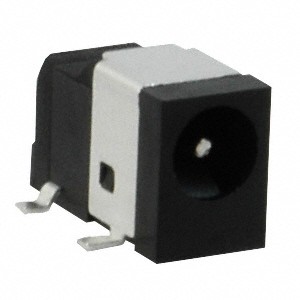

PJ-030C-SMT

Image is for reference,
please contact us to get the real picture

Part No :: PJ-030C-SMT

Manufacturer: CUI Devices

Description: CONN POWER JACK SOLDER

Catalog: Barrel - Power Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 19 - Jul 23 2025

DataSheet: PJ-030C-SMT PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of PJ-030C-SMT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PJ-030C-SMT Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Connector Type:	Jack
Gender:	Male
Industry Recognized Mating Diameter:	-
Actual Diameter:	0.039" (1.00mm ID), 0.165" (4.20mm OD)
Number of Positions/Contacts:	2 Conductors, 3 Contacts
Internal Switch(s):	Single Switch, Normally Closed
Mounting Type:	Surface Mount, Right Angle
Mounting Feature:	-
Termination:	Solder
Shielding:	Shielded
Features:	Board Guide
Insulation Color:	-
Voltage - Rated:	16VDC
Current Rating (Amps):	2 A
Mating Length/Depth:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
