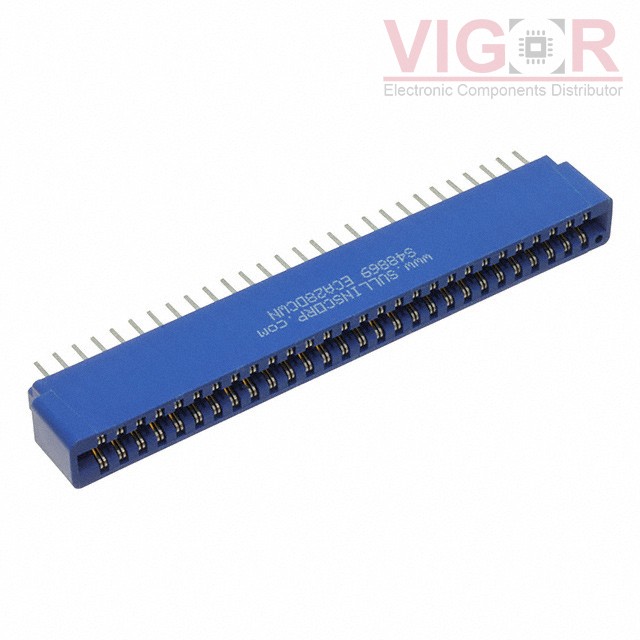

ECA28DCWN

Image is for reference,
please contact us to get the real picture

Part No :: ECA28DCWN

Manufacturer: Sullins Connector Solutions

Description: CONN EDGE DUAL FMALE 56POS 0.125

Catalog: Card Edge Connectors - Edgeboard Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 07 - Jul 11 2025

DataSheet: ECA28DCWN PDF

Availability: 931 pieces

Unit Price: ~~$8.02000~~

Current price of ECA28DCWN is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ECA28DCWN Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Card Type:	Non Specified - Dual Edge
Gender:	Female
Number of Positions/Bay/Row:	28
Number of Positions:	56
Card Thickness:	0.062" (1.57mm)
Number of Rows:	2
Pitch:	0.125" (3.18mm)
Read Out:	Dual
Features:	-
Mounting Type:	Through Hole
Termination:	Solder
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
Contact Type:	Hairpin Bellows
Color:	-
Flange Feature:	-
Operating Temperature:	-65°C ~ 125°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
