HSEC8-160-01-L-DV-A-BL

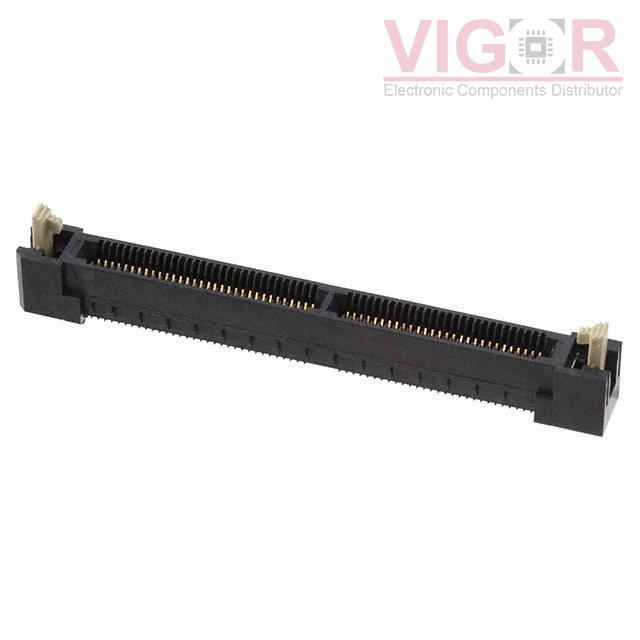

Image is for reference,
please contact us to get the real picture

Part No :

HSEC8-160-01-L-DV-A-BL

Manufacturer
Samtec, Inc.
Description
CONN EDGE DUAL FMALE 120P 0.031
Catalog
Card Edge Connectors - Edgeboard Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
HSEC8-160-01-L-DV-A-BL PDF
Availability
1571 pieces
Unit Price
$8.00000

Current price of HSEC8-160-01-L-DV-A-BL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:Edge Rate™ HSEC8
Package:Tray
Part Status:Active
Card Type:Non Specified - Dual Edge
Gender:Female
Number of Positions/Bay/Row:60
Number of Positions:120
Card Thickness:0.062" (1.57mm)
Number of Rows:2
Pitch:0.031" (0.80mm)
Read Out:Dual
Features:Board Guide, Board Lock
Mounting Type:Surface Mount
Termination:Solder
Contact Material:Beryllium Copper
Contact Finish:Gold
Contact Finish Thickness:10.0µin (0.25µm)
Contact Type:Cantilever
Color:Black
Flange Feature:-
Operating Temperature:-55°C ~ 125°C
