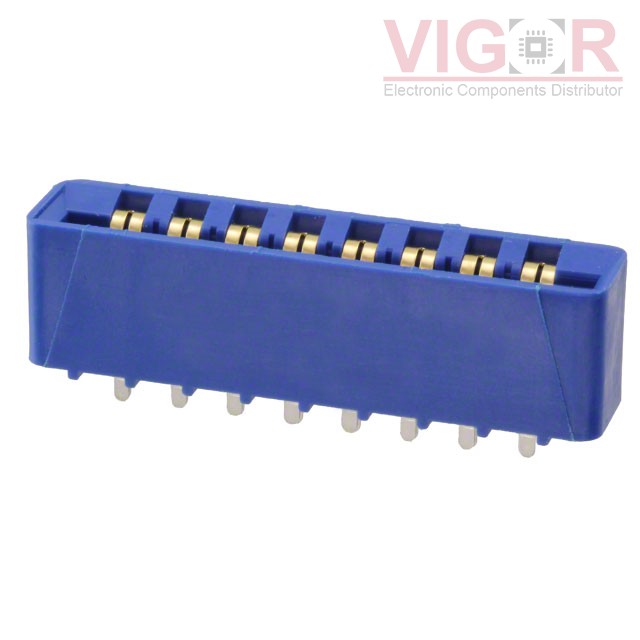

EBM08DSXN

EBM08DSXN

Image is for reference,
please contact us to get the real picture

Part No :

EBM08DSXN

Manufacturer
Sullins Connector Solutions
Description
CONN EDGE DUAL FMALE 16POS 0.156
Catalog
Card Edge Connectors - Edgeboard Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
EBM08DSXN PDF
Availability
97 pieces
Unit Price
$3.58000

Current price of EBM08DSXN is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EBM08DSXN Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Card Type:Non Specified - Dual Edge
Gender:Female
Number of Positions/Bay/Row:8
Number of Positions:16
Card Thickness:0.062" (1.57mm)
Number of Rows:2
Pitch:0.156" (3.96mm)
Read Out:Single
Features:-
Mounting Type:Through Hole
Termination:Solder
Contact Material:Phosphor Bronze
Contact Finish:Gold
Contact Finish Thickness:10.0µin (0.25µm)
Contact Type:Full Bellows
Color:Blue
Flange Feature:-
Operating Temperature:-65°C ~ 125°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

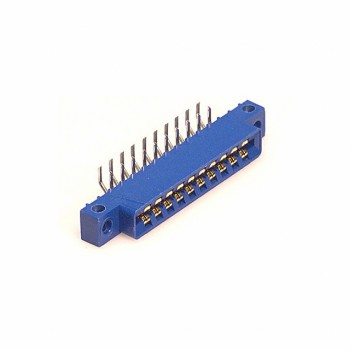

HOT EBM10DRAS

EBM10DRAS

CONN EDGE DUAL FMALE 20POS 0.156
HOT EBC10DRTH-S13

EBC10DRTH-S13

CONN EDGE DUAL FMALE 20POS 0.100

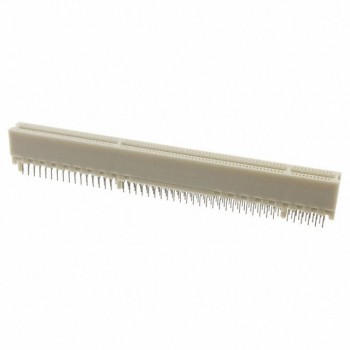

HOT 1-5145165-2
