HSEC8-113-01-S-DV-A-K-TR

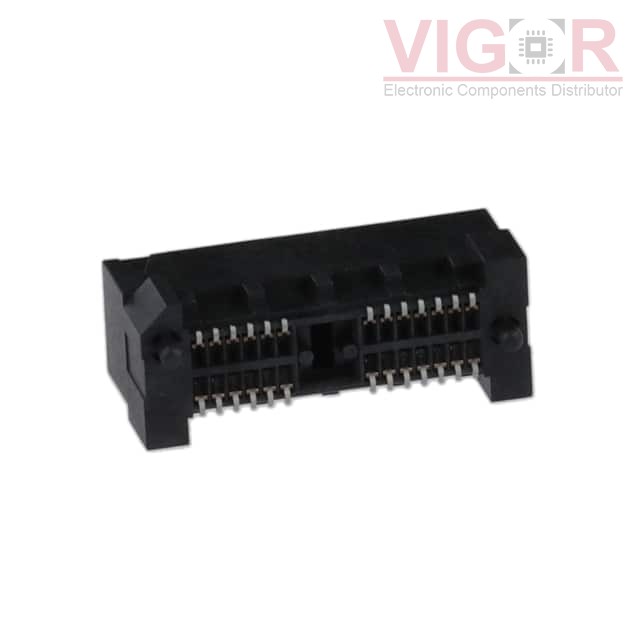

Image is for reference,
please contact us to get the real picture

Part No :: HSEC8-113-01-S-DV-A-K-TR

Manufacturer: Samtec, Inc.

Description: CONN EDGE DUAL FMALE 26POS 0.031

Catalog: Card Edge Connectors - Edgeboard Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 28 - Aug 01 2025

DataSheet: HSEC8-113-01-S-DV-A-K-TR PDF

Availability: 550 pieces

Unit Price: ~~$4.48000~~

Current price of HSEC8-113-01-S-DV-A-K-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HSEC8-113-01-S-DV-A-K-TR Specifications

Type	Description
Series:	Edge Rate™ HSEC8
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Card Type:	Non Specified - Dual Edge
Gender:	Female
Number of Positions/Bay/Row:	13
Number of Positions:	26
Card Thickness:	0.062" (1.57mm)
Number of Rows:	2
Pitch:	0.031" (0.80mm)
Read Out:	Dual
Features:	Board Guide, Locking Ramp
Mounting Type:	Surface Mount
Termination:	Solder
Contact Material:	Beryllium Copper
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
Contact Type:	Cantilever
Color:	Black
Flange Feature:	-
Operating Temperature:	-55°C ~ 125°C

Please confirm the specifications of the products when ordering.
