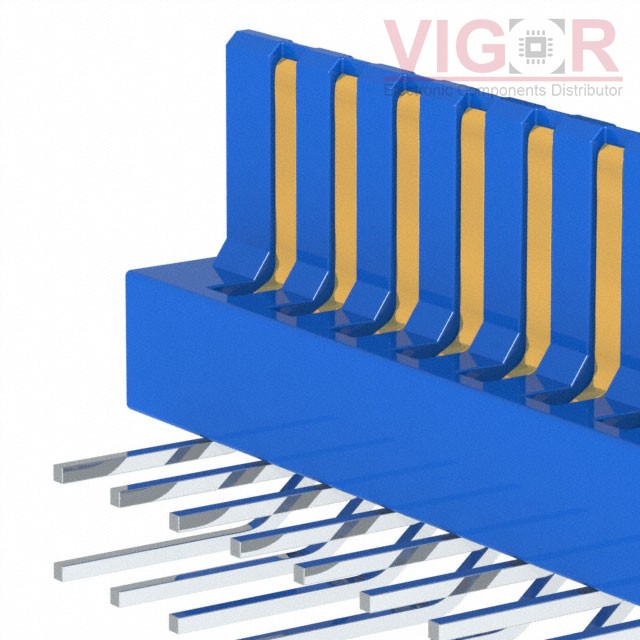

GBM10MMDN

Image is for reference,
please contact us to get the real picture

Part No :

GBM10MMDN

Manufacturer
Sullins Connector Solutions
Description
CONN CARDEDGE MALE 20POS 0.156
Catalog
Card Edge Connectors - Edgeboard Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
GBM10MMDN PDF
Availability
0 pieces
Unit Price
$4.28200

Current price of GBM10MMDN is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:-
Package:Tray
Part Status:Active
Card Type:Fits Female Edgecards
Gender:Male
Number of Positions/Bay/Row:10
Number of Positions:20
Card Thickness:0.062" (1.57mm)
Number of Rows:2
Pitch:0.156" (3.96mm)
Read Out:Dual
Features:-
Mounting Type:Through Hole, Right Angle
Termination:Solder
Contact Material:Phosphor Bronze
Contact Finish:Gold
Contact Finish Thickness:10.0µin (0.25µm)
Contact Type:-
Color:-
Flange Feature:-
Operating Temperature:-65°C ~ 125°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

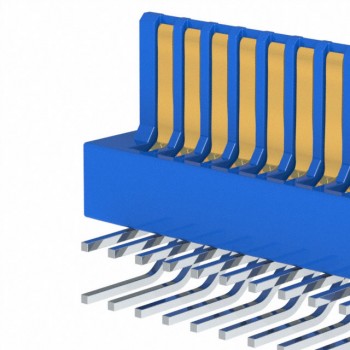

HOT EBC35MMBN

EBC35MMBN

CONN CARDEDGE MALE 70POS 0.100

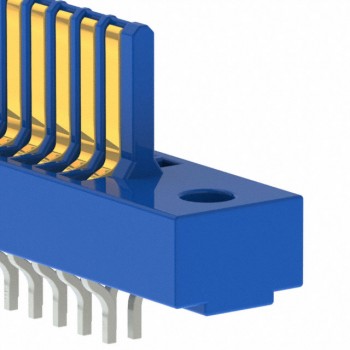

HOT ECC20MMRD

ECC20MMRD

CONN CARDEDGE MALE 40POS 0.100

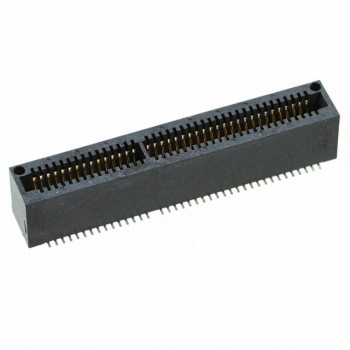

HOT MEC1-140-02-S-D-A
