PCIE-036-02-S-D-RA

PCIE-036-02-S-D-RA

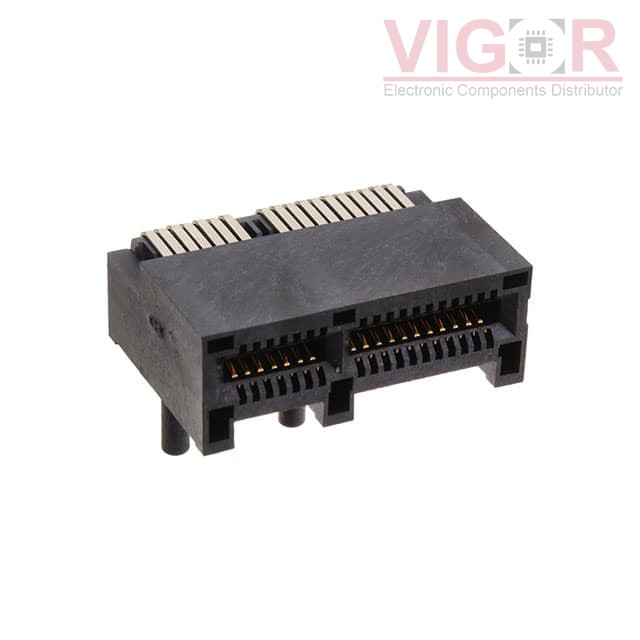

Image is for reference,
please contact us to get the real picture

Part No :

PCIE-036-02-S-D-RA

Manufacturer
Samtec, Inc.
Description
PCI EXPRESS EDGE MOUNT ASSEMBLY
Catalog
Card Edge Connectors - Edgeboard Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
PCIE-036-02-S-D-RA PDF
Availability
20 pieces
Unit Price
$6.71000

Current price of PCIE-036-02-S-D-RA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PCIE-036-02-S-D-RA Specifications
Type Description
Series:PCI Express® (PCIe)
Package:Tube
Part Status:Active
Card Type:PCI Express™
Gender:Female
Number of Positions/Bay/Row:-
Number of Positions:36
Card Thickness:0.062" (1.57mm)
Number of Rows:2
Pitch:0.039" (1.00mm)
Read Out:Dual
Features:Board Guide
Mounting Type:Through Hole, Right Angle
Termination:Solder, Staggered
Contact Material:Phosphor Bronze
Contact Finish:Gold
Contact Finish Thickness:30.0µin (0.76µm)
Contact Type:-
Color:Black
Flange Feature:-
Operating Temperature:-55°C ~ 125°C
