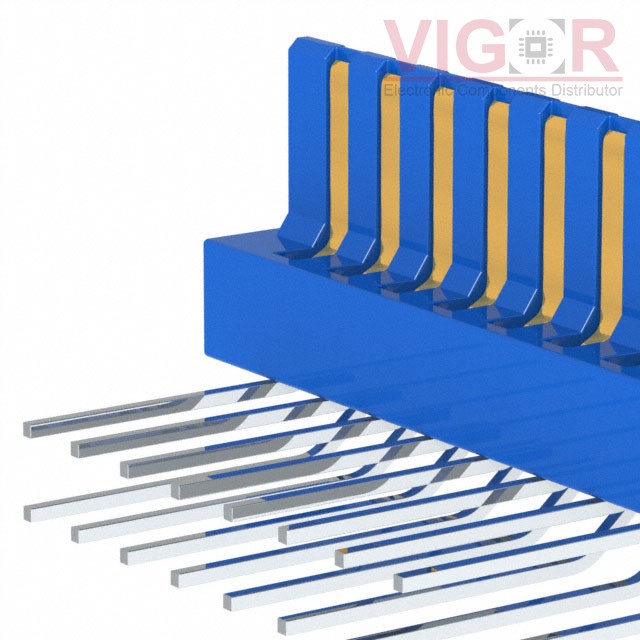

EBM22MMJN

Image is for reference,
please contact us to get the real picture

Part No :: EBM22MMJN

Manufacturer: Sullins Connector Solutions

Description: CONN CARDEDGE MALE 44POS 0.156

Catalog: Card Edge Connectors - Edgeboard Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 04 - Jul 08 2025

DataSheet: EBM22MMJN PDF

Availability: 0 pieces

Unit Price: ~~$5.88800~~

Current price of EBM22MMJN is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EBM22MMJN Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Card Type:	Fits Female Edgecards
Gender:	Male
Number of Positions/Bay/Row:	22
Number of Positions:	44
Card Thickness:	0.062" (1.57mm)
Number of Rows:	2
Pitch:	0.156" (3.96mm)
Read Out:	Dual
Features:	-
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)
Contact Type:	-
Color:	Blue
Flange Feature:	-
Operating Temperature:	-65°C ~ 125°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

GWE18DHRN-T9410

CONN PCI EXP FEMALE 36POS 0.039

HOT

SPD08-040-L-RB-TR

CONN EDGE DUAL FMALE 40POS 0.031

HOT

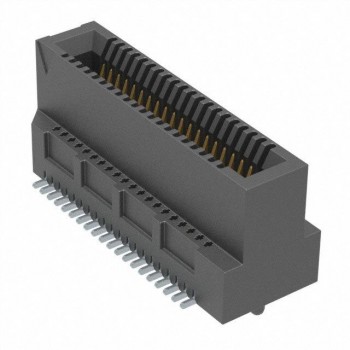

MEC8-120-02-S-DV-A-K-TR
