395-056-523-801

395-056-523-801

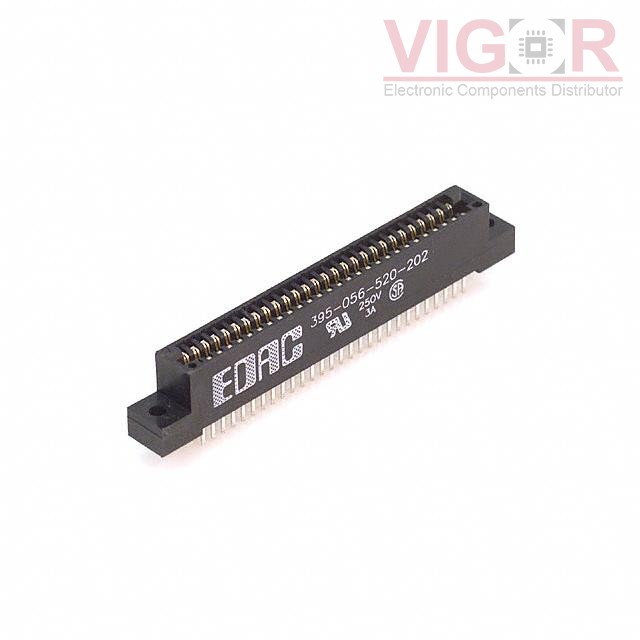

Image is for reference,
please contact us to get the real picture

Part No :

395-056-523-801

Manufacturer
EDAC Inc.
Description
CONN EDGE DUAL FMALE 56POS 0.100
Catalog
Card Edge Connectors - Edgeboard Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
395-056-523-801 PDF
Availability
0 pieces
Unit Price
$9.86720

Current price of 395-056-523-801 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

395-056-523-801 Specifications
Type Description
Series:395
Package:Bulk
Part Status:Obsolete
Card Type:Non Specified - Dual Edge
Gender:Female
Number of Positions/Bay/Row:28
Number of Positions:56
Card Thickness:0.062" (1.57mm)
Number of Rows:2
Pitch:0.100" (2.54mm)
Read Out:Dual
Features:-
Mounting Type:Through Hole
Termination:Solder
Contact Material:Copper, Nickel, Tin Alloy
Contact Finish:Gold
Contact Finish Thickness:-
Contact Type:-
Color:Black
Flange Feature:-
Operating Temperature:-65°C ~ 105°C
