MEC1-170-02-S-D-A

MEC1-170-02-S-D-A

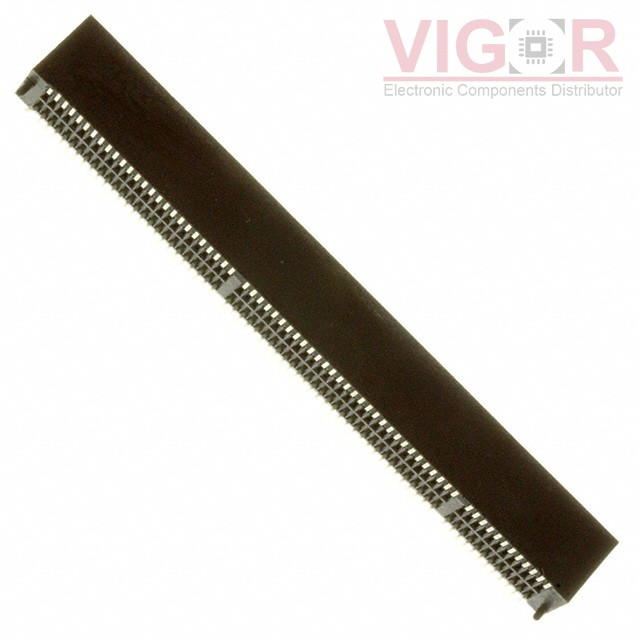

Image is for reference,
please contact us to get the real picture

Part No :

MEC1-170-02-S-D-A

Manufacturer
Samtec, Inc.
Description
CONN EDGE DUAL FMALE 140P 0.039
Catalog
Card Edge Connectors - Edgeboard Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
MEC1-170-02-S-D-A PDF
Availability
18 pieces
Unit Price
$13.71000

Current price of MEC1-170-02-S-D-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MEC1-170-02-S-D-A Specifications
Type Description
Series:MEC1
Package:Tube
Part Status:Active
Card Type:Non Specified - Dual Edge
Gender:Female
Number of Positions/Bay/Row:-
Number of Positions:140
Card Thickness:0.062" (1.57mm)
Number of Rows:2
Pitch:0.039" (1.00mm)
Read Out:Dual
Features:Board Guide
Mounting Type:Surface Mount
Termination:Solder
Contact Material:Phosphor Bronze
Contact Finish:Gold
Contact Finish Thickness:30.0µin (0.76µm)
Contact Type:Loop Bellows
Color:Black
Flange Feature:-
Operating Temperature:-55°C ~ 125°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
