JN1-22-22F-PKG100

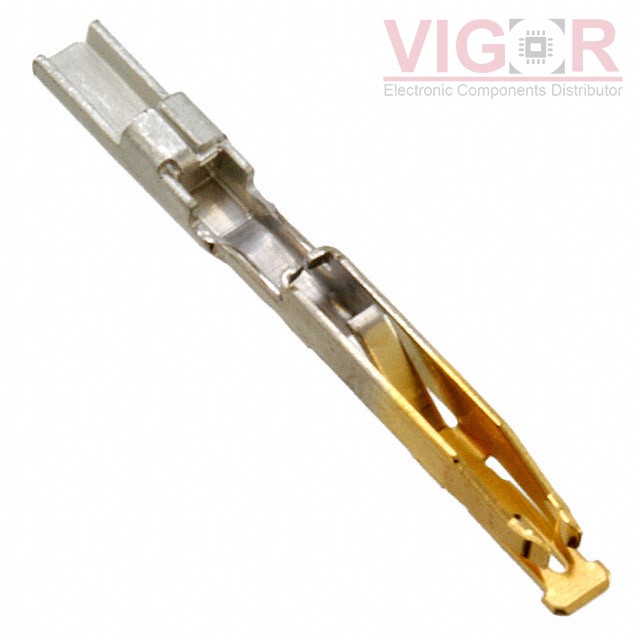

Image is for reference,
please contact us to get the real picture

Part No :: JN1-22-22F-PKG100

Manufacturer: JAE Electronics

Description: CONTACT SOCKET 20AWG

Catalog: Circular Connectors - Contacts

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: JN1-22-22F-PKG100 PDF

Availability: 23 pieces

Unit Price: ~~$0.98000~~

Current price of JN1-22-22F-PKG100 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JN1-22-22F-PKG100 Specifications

Type	Description
Series:	JN1
Package:	Bulk
Part Status:	Active
Type:	Signal, Stamped
Contact Type:	Socket
Contact Size:	22
Wire Gauge or Range - AWG:	20 AWG
Wire Gauge or Range - mm²:	-
Wire Gauge or Range - Coaxial:	-
Contact Termination:	Solder Cup
Contact Material:	Copper Alloy
Contact Finish:	Gold
Contact Finish Thickness:	3.94µin (0.10µm)
Termination Finish:	-
Features:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
