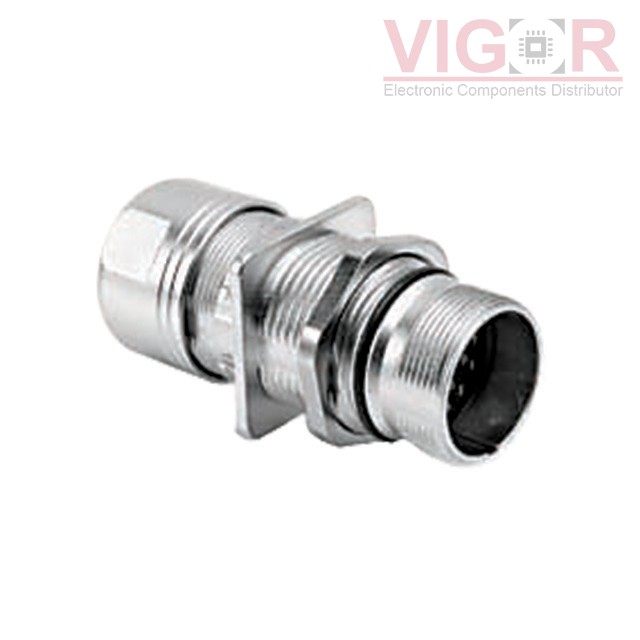

MA3TNP1600-S1

Image is for reference,
please contact us to get the real picture

Part No :: MA3TNP1600-S1

Manufacturer: Tuchel / Amphenol

Description: CONN RCPT HSNG F/M 16POS PNL MNT

Catalog: Circular Connectors - Housings

Shipped from: HK warehouse

Expected Shipping Date: Aug 01 - Aug 05 2025

DataSheet: MA3TNP1600-S1 PDF

Availability: 0 pieces

Unit Price: ~~$20.58000~~

Current price of MA3TNP1600-S1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MA3TNP1600-S1 Specifications

Type	Description
Series:	MotionGrade™ M23 Signal Standard Series, Threaded
Package:	Bulk
Part Status:	Active
Connector Type:	Receptacle Housing
Type:	For Female Sockets or Male Pins
Number of Positions:	16
Shell Size - Insert:	M23-16
Shell Size, MIL:	-
Contact Type:	Crimp
Contact Size:	1.0mm
Mounting Type:	Panel Mount
Mounting Feature:	Bulkhead - Front Side Nut
Fastening Type:	Threaded
Orientation:	P
Shell Material:	Zinc Die Cast
Shell Finish:	Nickel
Housing Color:	Silver
Ingress Protection:	IP67 - Dust Tight, Waterproof
Material Flammability Rating:	UL94 V-0
Features:	Cord Grip
Shielding:	Shielded
