09156093001

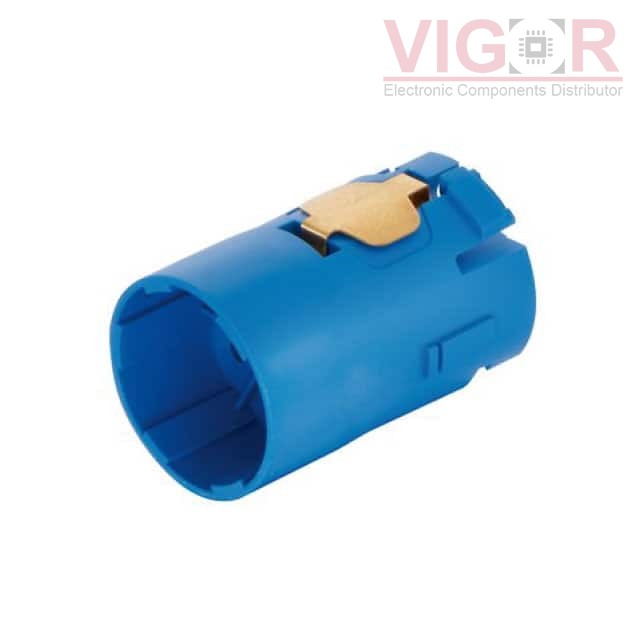

Image is for reference,
please contact us to get the real picture

Part No :: 09156093001

Manufacturer: HARTING

Description: CONN INSERT MALE 9POS

Catalog: Circular Connectors - Housings

Shipped from: HK warehouse

Expected Shipping Date: Aug 06 - Aug 10 2025

DataSheet: 09156093001 PDF

Availability: 31 pieces

Unit Price: ~~$16.13000~~

Current price of 09156093001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

09156093001 Specifications

Type	Description
Series:	Han® M23 Power
Package:	Bulk
Part Status:	Active
Connector Type:	Insert
Type:	For Male Pins
Number of Positions:	9 (5 + 3 Power + PE)
Shell Size - Insert:	M23-9
Shell Size, MIL:	-
Contact Type:	Crimp
Contact Size:	-
Mounting Type:	-
Mounting Feature:	-
Fastening Type:	-
Orientation:	A
Shell Material:	-
Shell Finish:	-
Housing Color:	Blue
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Features:	-
Shielding:	Unshielded

Please confirm the specifications of the products when ordering.
