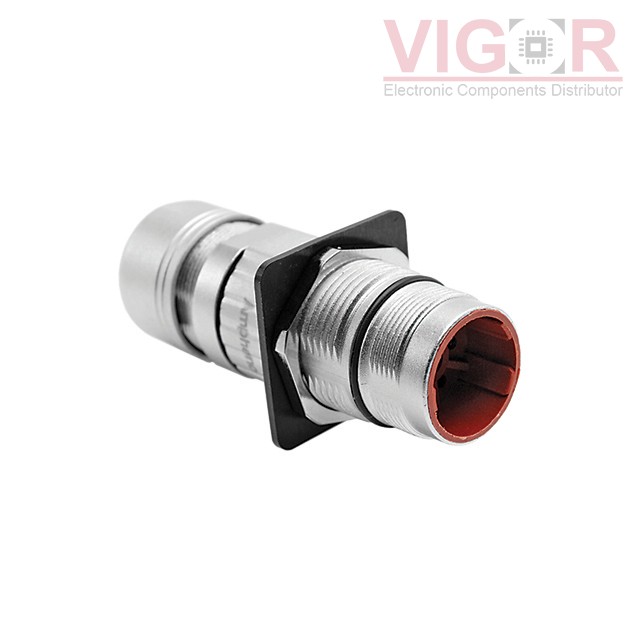

MB3TNN0800-S3

MB3TNN0800-S3

Image is for reference,
please contact us to get the real picture

Part No :

MB3TNN0800-S3

Manufacturer
Tuchel / Amphenol
Description
CONN RCPT HSNG MALE 8POS PNL MT
Catalog
Circular Connectors - Housings
Shipped from
HK warehouse
Expected Shipping Date
Jul 31 - Aug 04 2025
DataSheet
MB3TNN0800-S3 PDF
Availability
0 pieces
Unit Price
$22.41000

Current price of MB3TNN0800-S3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MB3TNN0800-S3 Specifications
Type Description
Series:MotionGrade™ M23 Power Standard Series, Threaded
Package:Bulk
Part Status:Active
Connector Type:Receptacle Housing
Type:For Male Pins
Number of Positions:8 (4 + 3 Power + PE)
Shell Size - Insert:M23-8
Shell Size, MIL:-
Contact Type:Crimp
Contact Size:1.0mm (4), 2.0mm (4)
Mounting Type:Panel Mount
Mounting Feature:Bulkhead - Front Side Nut
Fastening Type:Threaded
Orientation:Keyed
Shell Material:Zinc Die Cast
Shell Finish:Nickel
Housing Color:Silver
Ingress Protection:IP67 - Dust Tight, Waterproof
Material Flammability Rating:UL94 V-0
Features:Cord Grip
Shielding:Shielded
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT MS3471W12-8PX-LC

MS3471W12-8PX-LC

CONN RCPT HSG MALE 8POS INLINE
HOT MS3452W20-29PZ-LC

MS3452W20-29PZ-LC

CONN RCP HSG M 17P INLINE PNL MT

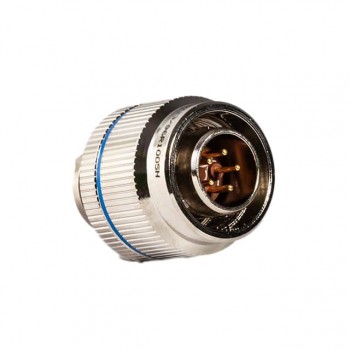

HOT M83723/75A803N-LC
