09151072602

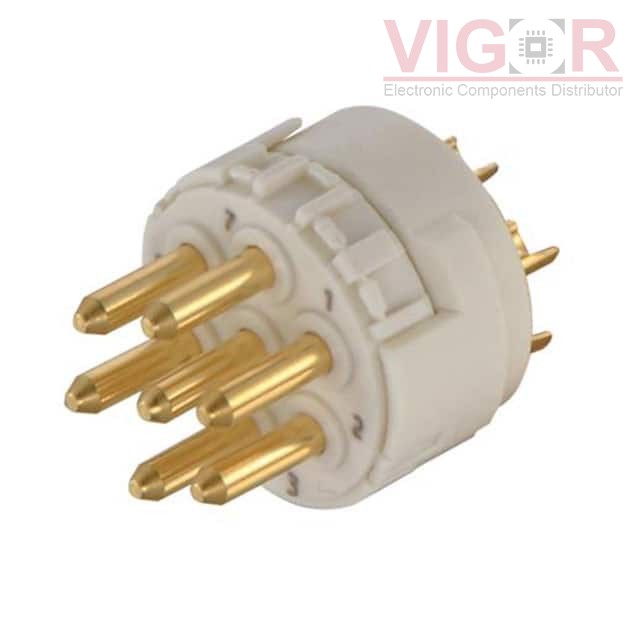

Image is for reference,
please contact us to get the real picture

Part No :: 09151072602

Manufacturer: HARTING

Description: CONN MALE INSERT 7P SOLDER CUP

Catalog: Circular Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 07 - Jul 11 2025

DataSheet: 09151072602 PDF

Availability: 9 pieces

Unit Price: ~~$19.32000~~

Current price of 09151072602 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

09151072602 Specifications

Type	Description
Series:	Han® M23
Package:	Bulk
Part Status:	Active
Connector Type:	Insert, Male Pins
Number of Positions:	7
Shell Size - Insert:	M23-7
Shell Size, MIL:	-
Mounting Type:	-
Mounting Feature:	-
Termination:	Solder Cup
Fastening Type:	-
Orientation:	-
Shell Material:	-
Shell Finish:	-
Contact Finish - Mating:	Gold
Color:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Features:	Insert Only, Requires Shell
Shielding:	Unshielded
Current Rating (Amps):	20A
Voltage Rating:	300V
Cable Opening:	-
Operating Temperature:	-40°C ~ 125°C
