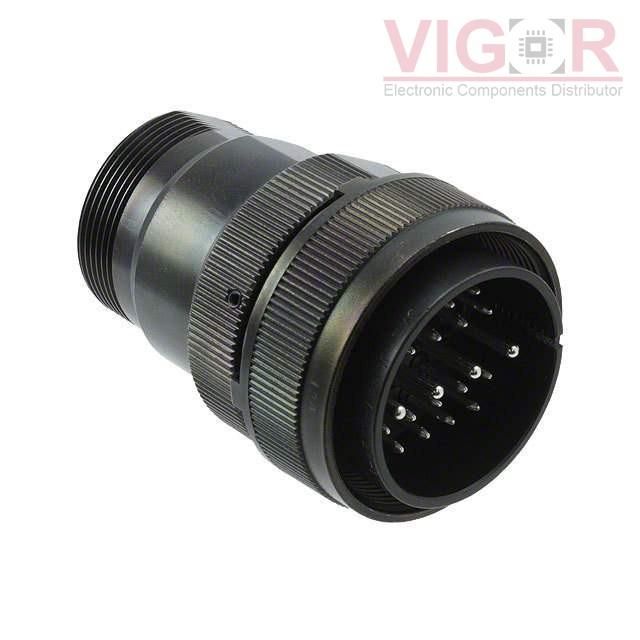

JL04V-6A28-11PE-EB-R

JL04V-6A28-11PE-EB-R

Image is for reference,
please contact us to get the real picture

Part No :

JL04V-6A28-11PE-EB-R

Manufacturer
JAE Electronics
Description
CONN PLUG MALE 22P SOLDER CUP
Catalog
Circular Connectors
Shipped from
HK warehouse
Expected Shipping Date
Aug 19 - Aug 23 2025
DataSheet
JL04V-6A28-11PE-EB-R PDF
Availability
0 pieces
Unit Price
$52.44000

Current price of JL04V-6A28-11PE-EB-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JL04V-6A28-11PE-EB-R Specifications
Type Description
Series:JL04V
Package:Bulk
Part Status:Active
Connector Type:Plug, Male Pins
Number of Positions:22 (21 + PE)
Shell Size - Insert:28-11
Shell Size, MIL:-
Mounting Type:Free Hanging (In-Line)
Mounting Feature:-
Termination:Solder Cup
Fastening Type:Threaded
Orientation:N (Normal)
Shell Material:Aluminum Alloy
Shell Finish:Zinc
Contact Finish - Mating:Silver
Color:Black
Ingress Protection:IP67 - Dust Tight, Waterproof
Material Flammability Rating:-
Features:Backshell, Coupling Nut, Ground
Shielding:-
Current Rating (Amps):13A, 23A
Voltage Rating:-
Cable Opening:-
Operating Temperature:-55°C ~ 125°C
